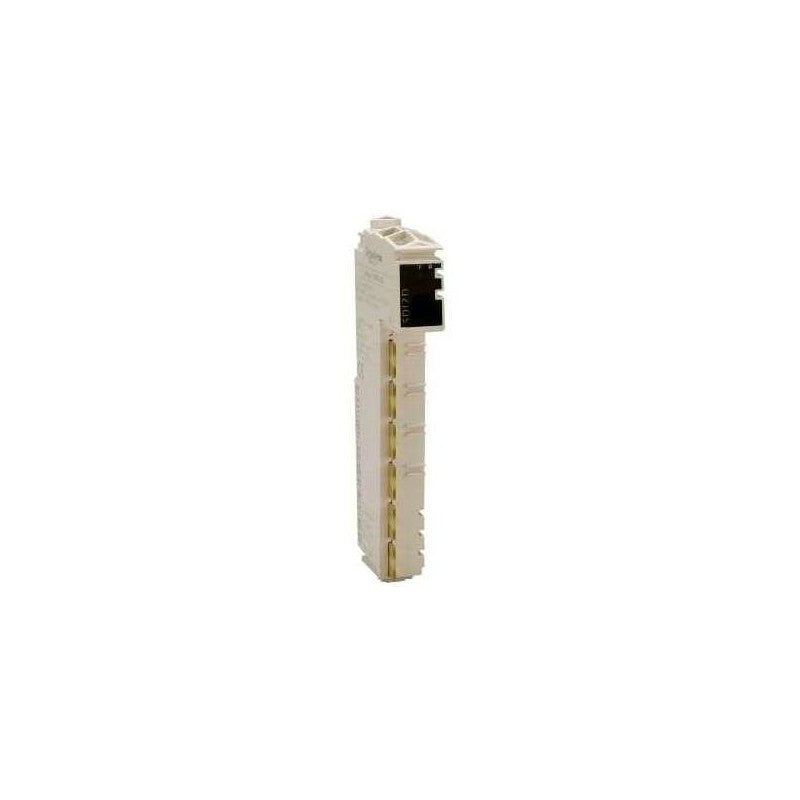

The TM5SDI12DK from Schneider Electric is a composition kit designed for modular I/O expansion within the Modicon TM5 system. This kit integrates a digital input module (TM5SDI12D), a terminal block (TM5ACTB12), and a bus base (TM5ACBM11) to facilitate seamless connectivity and data acquisition in automation architectures. It is engineered to provide reliable digital input functionality for various industrial control applications.

Technical details

• System Family: Modicon TM5
• Module Type: Digital Input Module Composition Kit
• Included Components: TM5SDI12D (Digital Input Module), TM5ACTB12 (Terminal Block), TM5ACBM11 (Bus Base)
• Digital Input Channels: The TM5SDI12D module typically provides 16 digital input channels. Specific voltage and current ratings for these inputs should be verified against the manufacturer's datasheet.
• Communication Interface: The TM5ACBM11 bus base provides the communication interface to the TM5 system backplane. Specific protocol details are dependent on the overall TM5 system configuration.
• Form Factor: Compact, modular design for DIN rail mounting within the TM5 system.
• Power Requirements: Power consumption and voltage requirements are typically supplied by the TM5 system backplane. Refer to the TM5 system documentation for detailed specifications.
• Environmental Ratings: Standard industrial operating temperature and humidity ranges apply. Consult the TM5 system documentation for precise environmental specifications.

Applications & compatibility

This TM5SDI12DK composition kit is integral to expanding the I/O capabilities of Schneider Electric's Modicon TM5 automation platform. It is commonly deployed in machine building, process control, and discrete manufacturing environments requiring robust digital input signal acquisition. Applications include monitoring sensors, switches, and control signals on packaging machinery, assembly lines, and material handling systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TM5SDI12DK or contact our technical team for cross-reference assistance with compatible Modicon TM5 system components.
