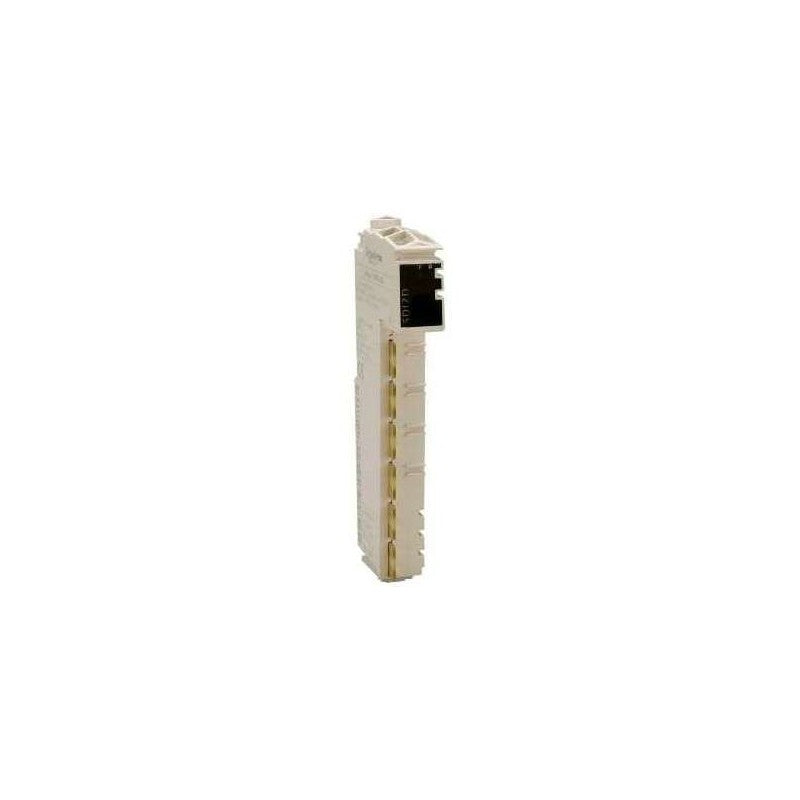

The Schneider Electric TM5SDO12TK is a discrete output module designed for use within the Modicon TM5 I/O system. This specific configuration comprises a TM5SDO12T discrete output module, a TM5ACTB12 terminal block, and a TM5ACBM11 bus base, forming a complete I/O composition kit. It is engineered to provide reliable digital output control for various automation tasks.

Technical details

• Series: Modicon TM5
• Module Type: Discrete Output Module
• Composition Kit Includes: TM5SDO12T Output Module, TM5ACTB12 Terminal Block, TM5ACBM11 Bus Base
• Output Channels: 12 discrete outputs (as indicated by '12' in TM5SDO12T)
• Voltage Rating: Verify specific voltage requirements against the manufacturer's datasheet. The part number does not explicitly define the voltage class.
• Current Rating: Verify specific current requirements against the manufacturer's datasheet. The part number does not explicitly define the current rating.
• Communication Protocol: Modicon TM5 bus communication
• Form Factor: Compact module designed for DIN rail mounting within the TM5 system.

Applications & compatibility

This TM5SDO12TK module is suitable for integration into Modicon TM5 distributed I/O architectures. It is commonly employed in machine building, process control, and factory automation environments requiring precise digital output actuation for devices such as solenoids, relays, and indicator lights. Its modular design facilitates expansion and customization within TM5 systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TM5SDO12TK or contact our technical team for cross-reference assistance with compatible Modicon TM5 components.
