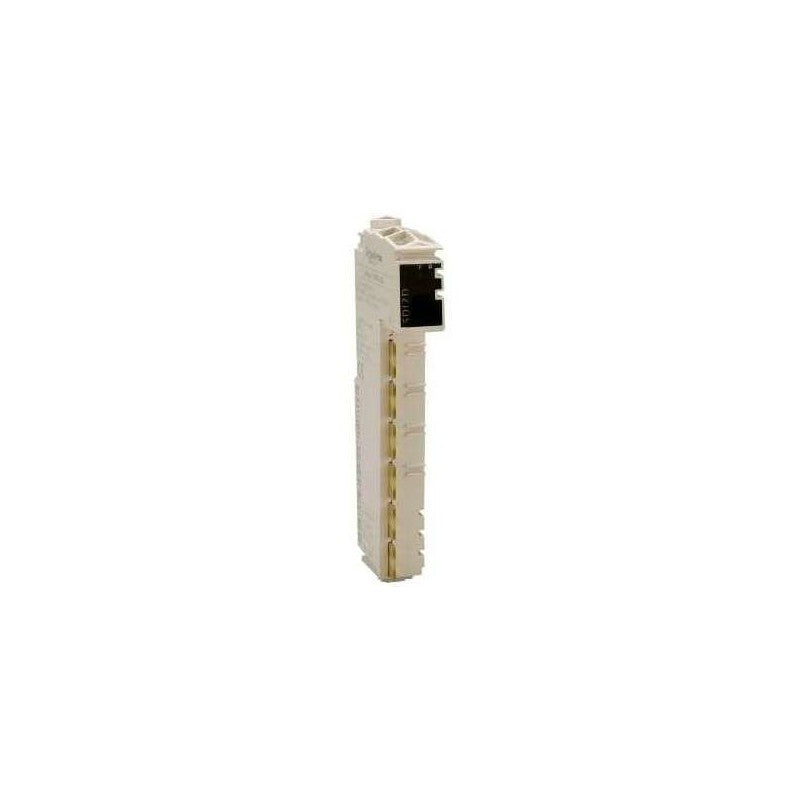

The Schneider Electric TM5SDO2T is a digital output module designed for use within the Modicon TM5 system. This module provides two discrete outputs, each rated for 24V DC and capable of handling a current of 0.5A. It is configured with a 3-wire connection, typical for direct connection to actuators or indicator devices in automation control systems.

Technical details

• System Family: Modicon TM5
• Module Type: Digital Output Module
• Number of Outputs: 2
• Output Voltage Rating: 24V DC
• Output Current Rating: 0.5A per channel
• Wiring Configuration: 3-wire
• Module Functionality: Provides switched 24V DC outputs for controlling external devices such as solenoid valves, relays, or indicator lamps.
• Isolation: Channel-to-logic isolation is standard for this module type, ensuring protection of the controller.

Applications & compatibility

This TM5SDO2T module is suitable for a wide range of industrial automation applications requiring discrete output control. It is commonly integrated into control cabinets for machine building, assembly lines, material handling systems, and process control where 24V DC actuators need to be switched on and off by the PLC.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TM5SDO2T or contact our technical team for cross-reference assistance with compatible Modicon TM5 system components.
