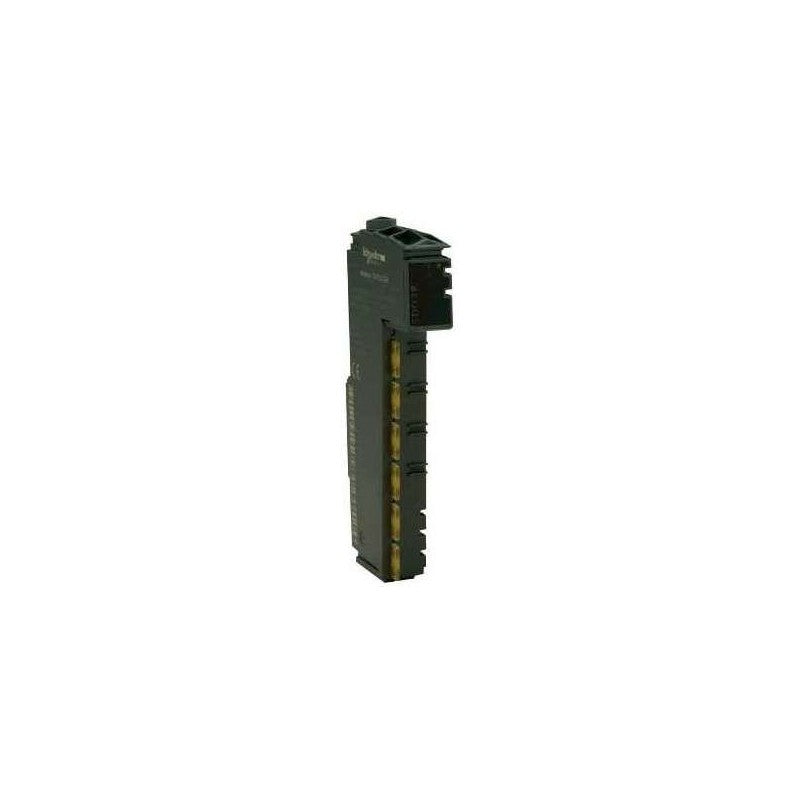

Part of the Schneider Electric Modicon TM5 I/O system, the TM5SDO4R is a digital output module designed for demanding industrial control applications. This module provides four relay outputs, each capable of switching up to 5A, and supports both 30V DC and 230V AC loads. It is commonly integrated into PLC systems for controlling actuators, solenoids, and other low-power devices on automated machinery.

Technical details

• Series: Modicon TM5
• Module Type: Digital Output Module
• Output Configuration: 4 Normally Open (NO) relay contacts
• Contact Rating: 5A per channel
• Switching Voltage: 30V DC maximum, 230V AC maximum
• Output Type: Relay (4 C/O - Common, Normally Open, Normally Closed contacts per channel)
• Form Factor: Compact module for DIN rail mounting
• Compatibility: Designed for use with Modicon TM5 base modules and controllers. For specific controller compatibility, consult the manufacturer's datasheet.

Applications & compatibility

The TM5SDO4R is suitable for a wide range of automation tasks, including control of pneumatic valves, indicator lights, and small motor contactors in sectors such as material handling, packaging machinery, and assembly lines. Its versatility in handling both DC and AC loads makes it a flexible choice for diverse control panel designs.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TM5SDO4R or contact our technical team for cross-reference assistance with compatible Modicon TM5 components.
