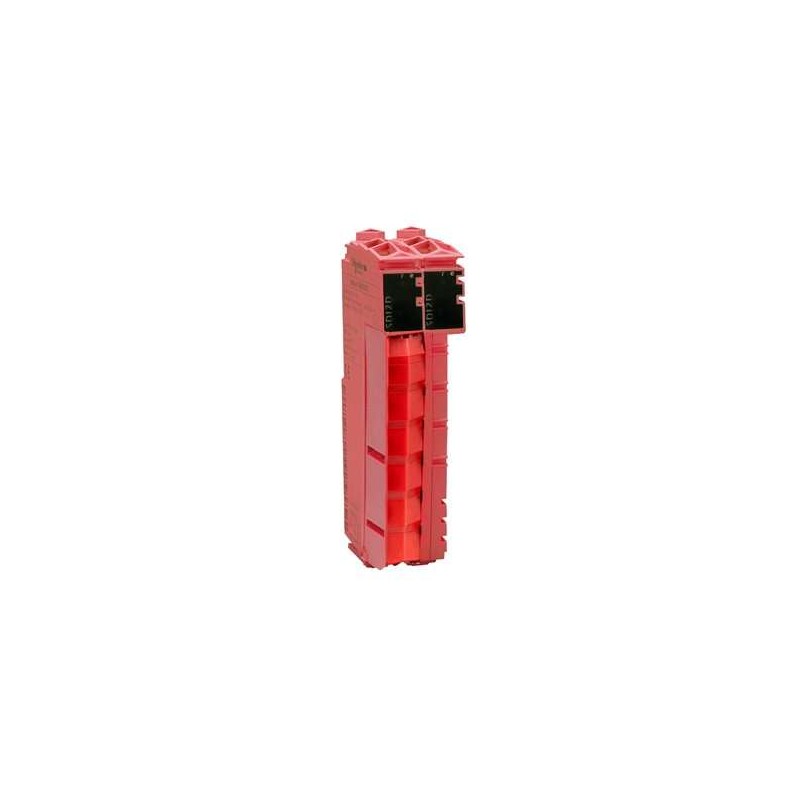

The Schneider Electric TM5STI4ATCFS is a high-resolution analog input module designed for thermocouple signal acquisition within the Modicon TM5 system. This module features 2 analog input channels and supports a wide range of thermocouple types, including J, K, N, S, R, C, and T, making it suitable for diverse temperature monitoring applications in demanding industrial environments.

Technical details

• Module Type: Analog Input Module
• System Compatibility: Modicon TM5
• Input Channels: 2 Analog Inputs
• Input Signal Type: Thermocouple
• Supported Thermocouple Types: J, K, N, S, R, C, T
• Resolution: 24 bits
• Form Factor: FS (likely refers to a specific physical dimension or mounting standard within the TM5 series; verify against datasheet for precise dimensions)
• Communication Interface: Integrated within the TM5 backplane; specific protocol details should be confirmed via manufacturer documentation.

Applications & compatibility

This analog input module is engineered for precise temperature measurement in process control and automation systems. It is commonly deployed in applications such as chemical processing, food and beverage production, plastics manufacturing, and environmental monitoring where accurate and reliable thermocouple readings are critical for maintaining operational parameters and product quality.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TM5STI4ATCFS or contact our technical team for cross-reference assistance with compatible Modicon TM5 system components.
