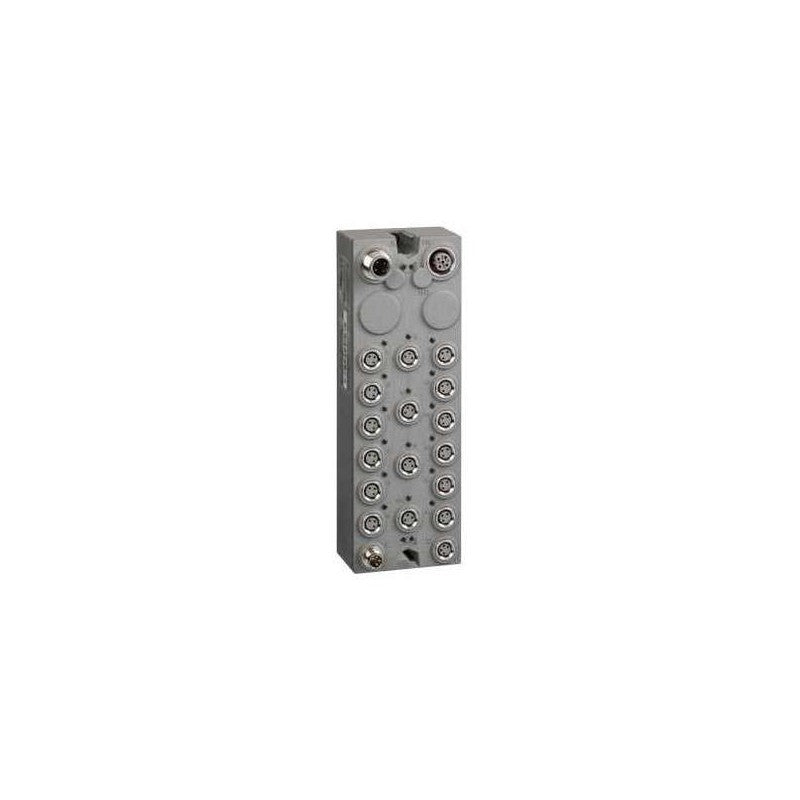

The Schneider Electric TM7BDM16B is an expansion block designed for use within the TM7 modular I/O system. This block provides 16 digital input/output channels, suitable for extending the control capabilities of compatible automation controllers. Its robust construction ensures reliable operation in demanding industrial environments.

Technical details

• Series: TM7
• Type: Expansion Block
• Ingress Protection: IP67 rated for dust and water resistance
• Digital I/O Configuration: 16 Channels (16 DI/DO)
• Operating Voltage: 24V DC
• Maximum Current per Channel: 0.5 A
• Connector Type: M8 connectors for digital I/O
• Form Factor: Modular expansion unit

Applications & compatibility

This TM7 expansion block is commonly integrated into machine control systems, particularly on packaging machinery, assembly lines, and material handling equipment. It is designed to interface with controllers that support the TM7 modular I/O architecture, facilitating distributed I/O configurations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TM7BDM16B or contact our technical team for cross-reference assistance with compatible TM7 system components.
