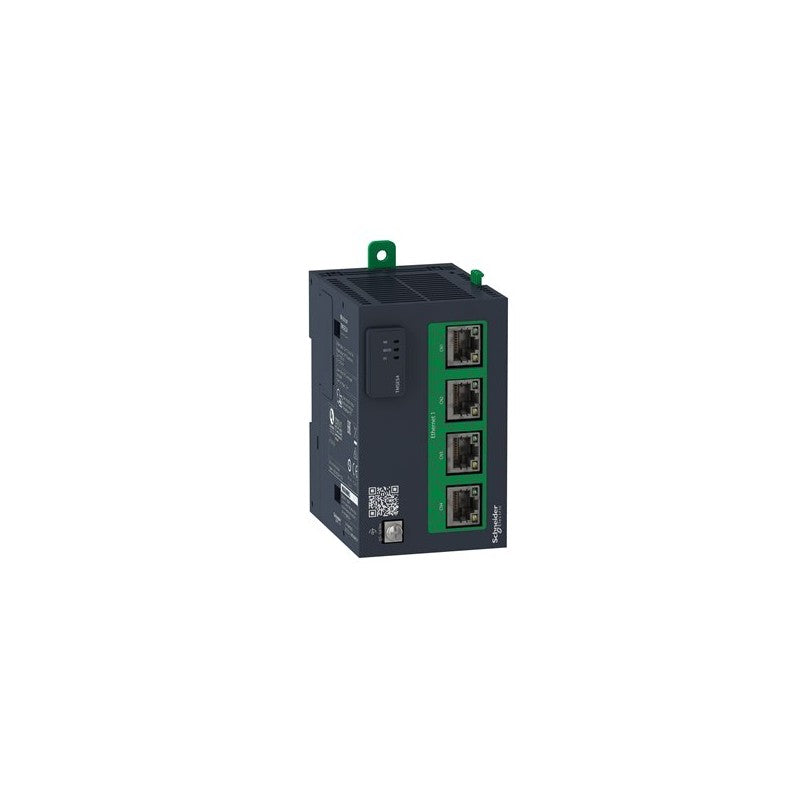

The Schneider Electric TMSES4 is a Smart Module Ethernet designed for industrial network connectivity. This module is part of the Modicon M580 ePAC (Enhanced Programmable Automation Controller) platform, enabling robust communication within automation systems. It provides four RJ45 ports for Ethernet connectivity, facilitating data exchange between controllers, HMIs, and other network devices.

Technical details

• Series: Modicon M580 ePAC
• Module Type: Smart Module Ethernet
• Connectivity: 4 x RJ45 Ethernet ports
• Communication Protocol: Ethernet/IP, Modbus TCP/IP
• Data Rate: Up to 100 Mbps (Fast Ethernet)
• Power Supply: Typically powered via the backplane of the M580 ePAC chassis; specific voltage requirements should be verified against the M580 system datasheet.
• Form Factor: Designed for installation in Modicon M580 ePAC racks.
• Environmental Rating: Standard industrial operating temperature and humidity ranges; refer to manufacturer datasheet for precise specifications.

Applications & compatibility

This Ethernet module is integral to modern industrial control systems, commonly found in applications requiring high-speed data acquisition and communication. It is suitable for integration into distributed control systems (DCS) and supervisory control and data acquisition (SCADA) systems across various industries, including manufacturing, water treatment, and oil & gas.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TMSES4 or contact our technical team for cross-reference assistance with compatible Modicon M580 components.
