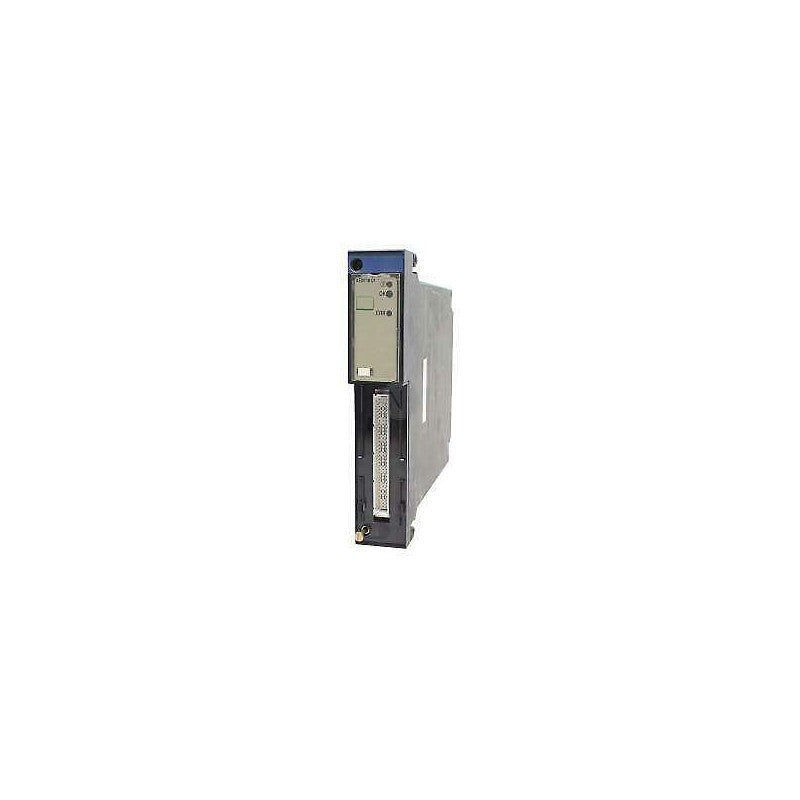

The Schneider Electric TSXAEM1601 is an analog input module designed for Modicon TSX series PLCs. This module features 16 discrete analog input channels, each capable of accepting a +/-10V signal. It provides 11-bit resolution for precise analog signal acquisition within automation systems.

Technical details

• Series: Modicon TSX
• Module Type: Analog Input Module
• Number of Inputs: 16
• Input Signal Range: +/-10V
• Resolution: 11 bits
• Form Factor: Designed for integration into Modicon TSX rack systems.
• Communication Protocol: Compatible with Modicon TSX backplane communication.
• Power Consumption: Refer to manufacturer datasheet for specific power requirements.

Applications & compatibility

This analog input module is commonly utilized in applications requiring precise monitoring of analog signals, such as temperature sensors, pressure transducers, or potentiometers within process control, manufacturing automation, and machine control environments. It is compatible with various Modicon TSX series PLC bases and expansion racks.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TSXAEM1601 or contact our technical team for cross-reference assistance with compatible Modicon TSX components.
