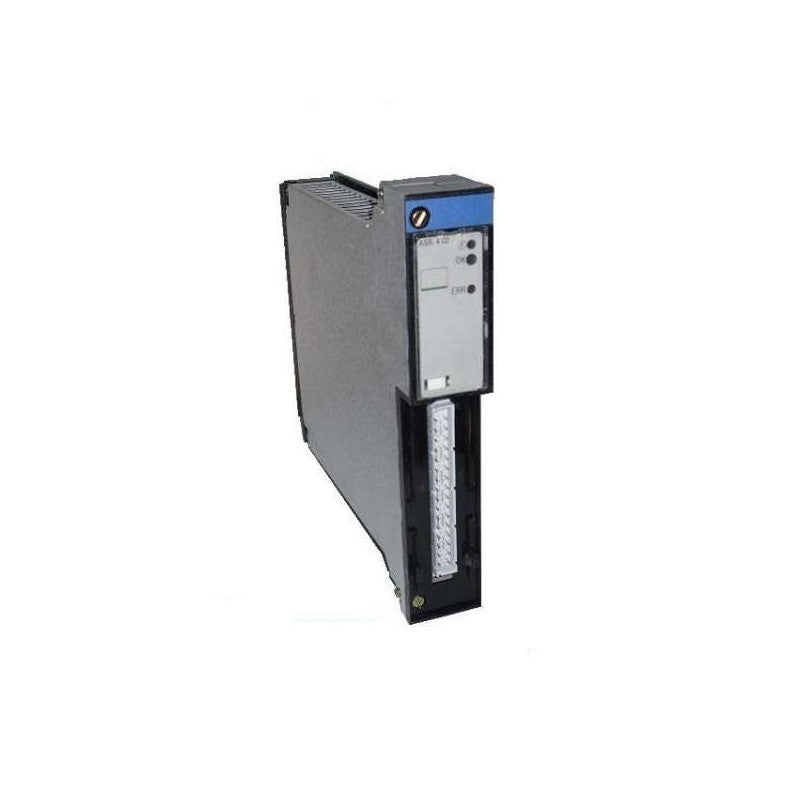

The Schneider Electric TSXAST200 is an analog output module designed for the Modicon TSX series of programmable logic controllers. This module provides two analog outputs, each capable of 12-bit resolution, supporting standard industrial signal ranges of 0-10 V, 0-20 mA, and 4-20 mA. It is engineered to interface with a variety of control systems requiring precise analog signal generation for actuators, variable speed drives, or other analog-controlled devices.

Technical details

• Series: Modicon TSX
• Module Type: Analog Output Module
• Number of Outputs: 2
• Resolution: 12 bits
• Output Signal Ranges: 0-10 V, 0-20 mA, 4-20 mA
• Form Factor: Designed for integration within the Modicon TSX rack system.
• Voltage Output Capability: Up to 10 V
• Current Output Capability: Up to 20 mA

Applications & compatibility

This output module is suitable for applications requiring precise analog signal control within Modicon TSX automation systems. It is commonly found in process control environments, machine automation, and building management systems where analog signals are used to regulate equipment such as pneumatic valves, hydraulic actuators, or motor speed controllers.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TSXAST200 or contact our technical team for cross-reference assistance with compatible Modicon TSX components.
