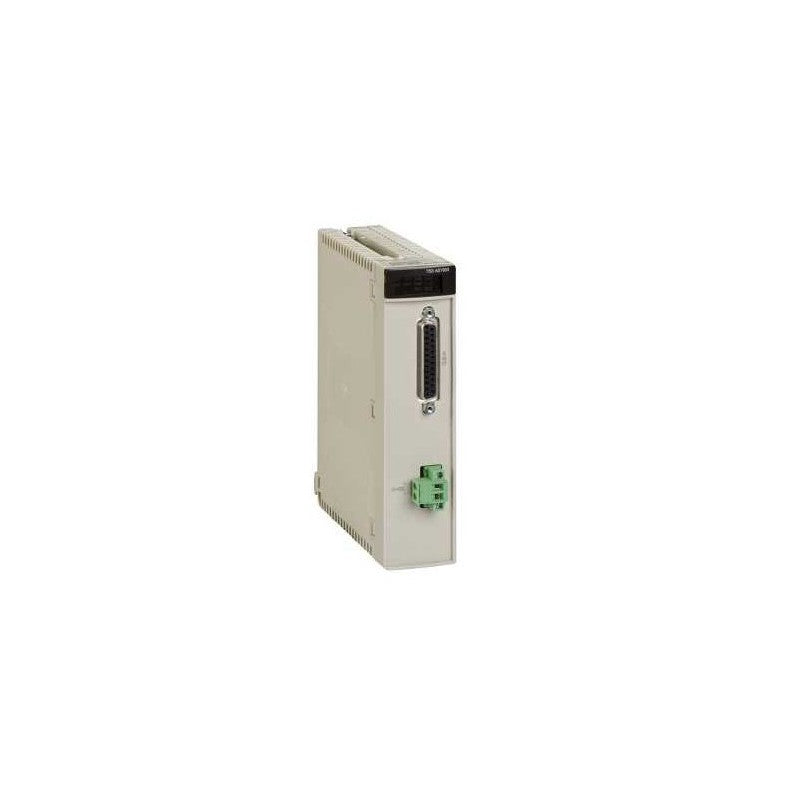

Part of the Schneider Electric TSX Premium series, the TSXASY800C is an analog output module designed for precise control in industrial automation systems. This module provides eight independent analog outputs, suitable for applications requiring simultaneous current and voltage signal generation. Its architecture supports 13-bit resolution for both current and voltage outputs, plus an additional bit for sign, enabling fine-tuned signal manipulation.

Technical details

• Series: TSX Premium
• Output Type: Analog
• Number of Outputs: 8
• Output Signal Types: Current, Voltage
• Resolution: 13 bits (Current), 13 bits (Voltage), 13 bits + Sign
• Module Functionality: Analog output signal generation
• Compatibility: Designed for use with Schneider Electric TSX Premium PLCs. Verify specific PLC rack and processor compatibility with the manufacturer's datasheet.

Applications & compatibility

The TSXASY800C analog output module is commonly integrated into process control systems, machine automation, and building management applications. It is particularly well-suited for controlling variable speed drives, pneumatic valve positioners, and other actuators that require precise analog signal feedback or control signals within packaging machinery, material handling systems, and environmental control units.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TSXASY800C or contact our technical team for cross-reference assistance with compatible TSX Premium components.
