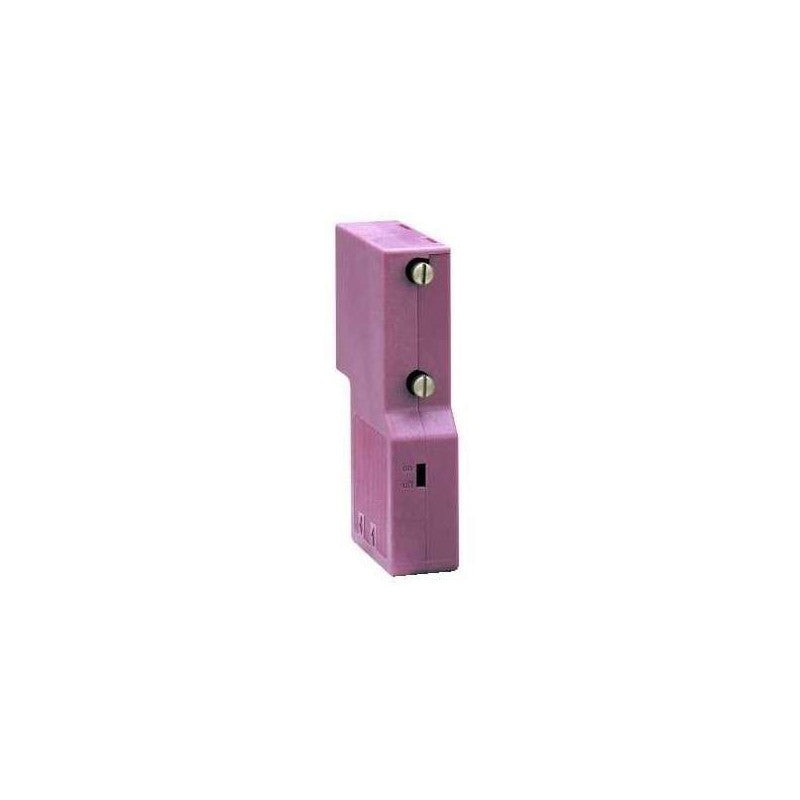

The Schneider Electric TSXCANKCDF90TP is a CANopen communication connector designed for industrial automation systems. This specific model features a 90-degree bent SUB-D9 female connector, facilitating compact wiring configurations in control cabinets. It also includes an additional SUB-D9 port, offering expanded connectivity options for daisy-chaining or connecting multiple devices within a CANopen network.

Technical details

• Communication Protocol: CANopen
• Connector Type: SUB-D9 Female
• Connector Orientation: 90-degree bend
• Additional Port: Integrated SUB-D9 port for expanded connectivity
• Enclosure Rating: IP20
• Series/Family: TSX CANopen (as indicated by part number prefix)
• Application: Designed for connecting automation devices to a CANopen network
• Termination: Integrated termination resistor functionality may be present; verify with manufacturer datasheet.

Applications & compatibility

This CANopen connector is commonly employed in machine building and factory automation environments where CANopen is the chosen fieldbus protocol. It is suitable for integrating various automation components such as PLCs, HMIs, motor drives, and sensors into a unified network. Applications include packaging machinery, material handling systems, and process control equipment requiring robust and reliable communication.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TSXCANKCDF90TP or contact our technical team for cross-reference assistance with compatible Schneider Electric CANopen components.
