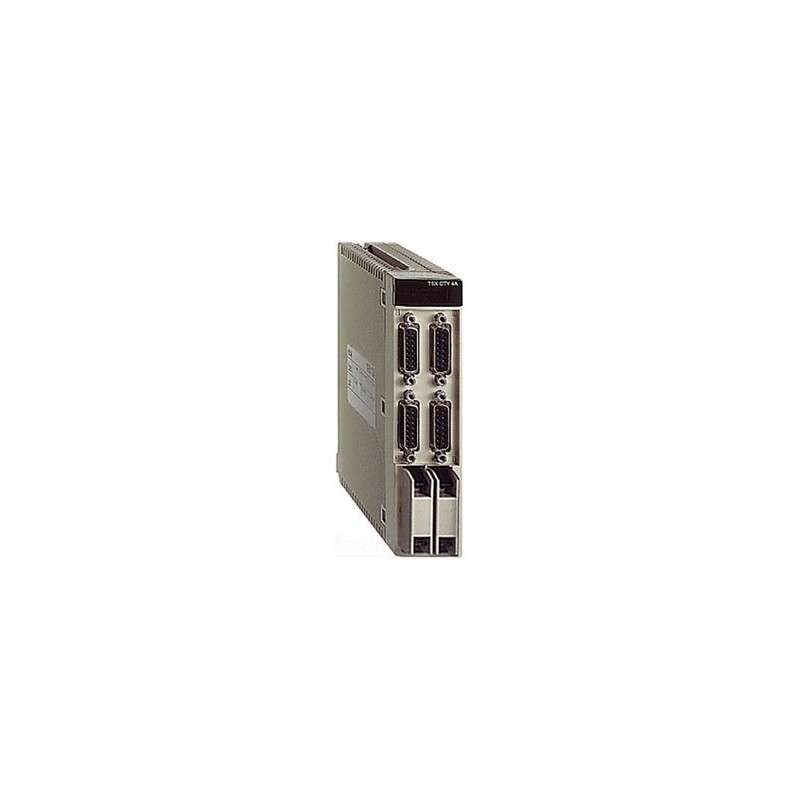

The Schneider Electric TSXCTY4A is a 4-channel counter module designed for high-speed counting applications within the Modicon TSX platform. This module facilitates precise data acquisition for process control and automation systems, offering a maximum counting frequency of 40 kHz. It is engineered to integrate seamlessly into existing TSX automation architectures, providing reliable performance for demanding industrial environments.

Technical details

• Series: Modicon TSX
• Module Type: 4-channel Counter Module
• Maximum Counting Frequency: 40 kHz
• Power Consumption (24 V DC): 36 mA
• Power Consumption (5 V DC): 330 mA
• Number of Channels: 4
• Voltage Compatibility: Operates with 24 V DC and 5 V DC power supplies.
• Functionality: High-speed counting and pulse measurement.

Applications & compatibility

This counter module is commonly employed in applications requiring precise measurement of events or pulses, such as packaging machinery, material handling systems, and production line monitoring. Its compatibility with the Modicon TSX series ensures straightforward integration into existing automation infrastructure, supporting a wide range of industrial control tasks.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TSXCTY4A or contact our technical team for cross-reference assistance with compatible Modicon TSX components.
