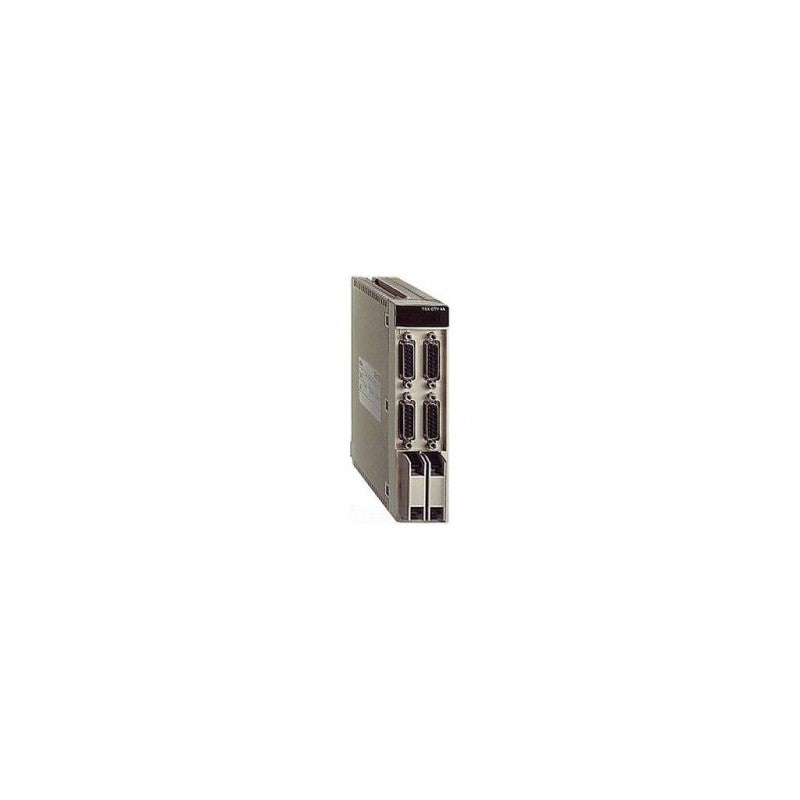

The Schneider Electric TSXCTY4AC is a 4-channel counter module designed for high-speed counting applications within Modicon TSX series automation systems. This module facilitates precise measurement and control in demanding industrial environments, commonly integrated into systems requiring accurate pulse counting for process monitoring and machine control.

Technical details

• Series: Modicon TSX
• Module Type: Counter Module
• Number of Channels: 4
• Maximum Counting Frequency: 40 kHz
• Input Voltage (Module): 24 V DC
• Input Current (Module at 24 V DC): 36 mA
• Input Voltage (Internal Logic): 5 V DC
• Input Current (Internal Logic at 5 V DC): 330 mA
• Compatible with Modicon TSX Series PLCs

Applications & compatibility

This counter module is suitable for applications such as high-speed packaging machinery, precise positioning systems on CNC equipment, and accurate speed monitoring in conveyor systems. Its integration within the Modicon TSX platform ensures compatibility with a wide range of Schneider Electric automation controllers and I/O racks.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TSXCTY4AC or contact our technical team for cross-reference assistance with compatible Modicon TSX counter modules.
