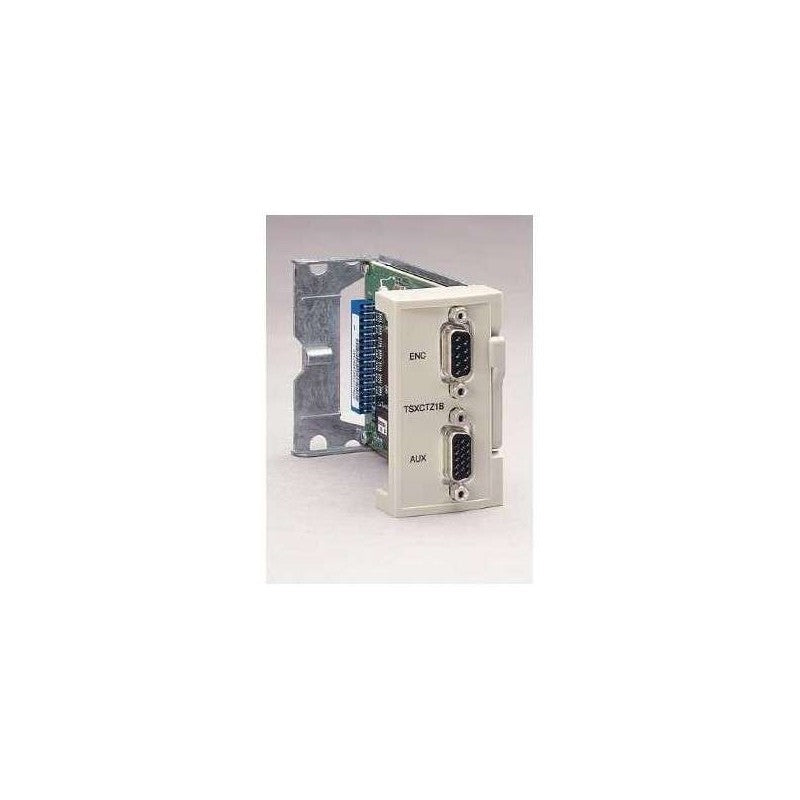

The Schneider Electric TSXCTZ1B is an absolute encoder module designed for the Modicon TSX Micro series of programmable logic controllers. This specific module interfaces with a single channel of SSI (Synchronous Serial Interface) absolute encoder data, enabling precise position feedback in automated systems. It is engineered to integrate seamlessly within the TSX Micro platform, providing reliable data acquisition for motion control and positioning applications.

Technical details

• Series: Modicon TSX Micro
• Module Type: Absolute Encoder Interface
• Interface Protocol: Synchronous Serial Interface (SSI)
• Number of Channels: 1
• Encoder Type Compatibility: Absolute Encoders
• Data Format: SSI absolute data
• Voltage Compatibility: Designed for integration within the TSX Micro system architecture; specific voltage requirements should be verified against the TSX Micro system datasheet.
• Functionality: Receives and processes absolute position data from connected SSI encoders.

Applications & compatibility

This TSXCTZ1B module is commonly employed in applications requiring high-precision position monitoring and control within the Modicon TSX Micro automation ecosystem. Typical uses include robotics, CNC machinery, automated assembly lines, and material handling systems where accurate feedback from absolute encoders is critical for operational success.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TSXCTZ1B or contact our technical team for cross-reference assistance with compatible Modicon TSX Micro components.
