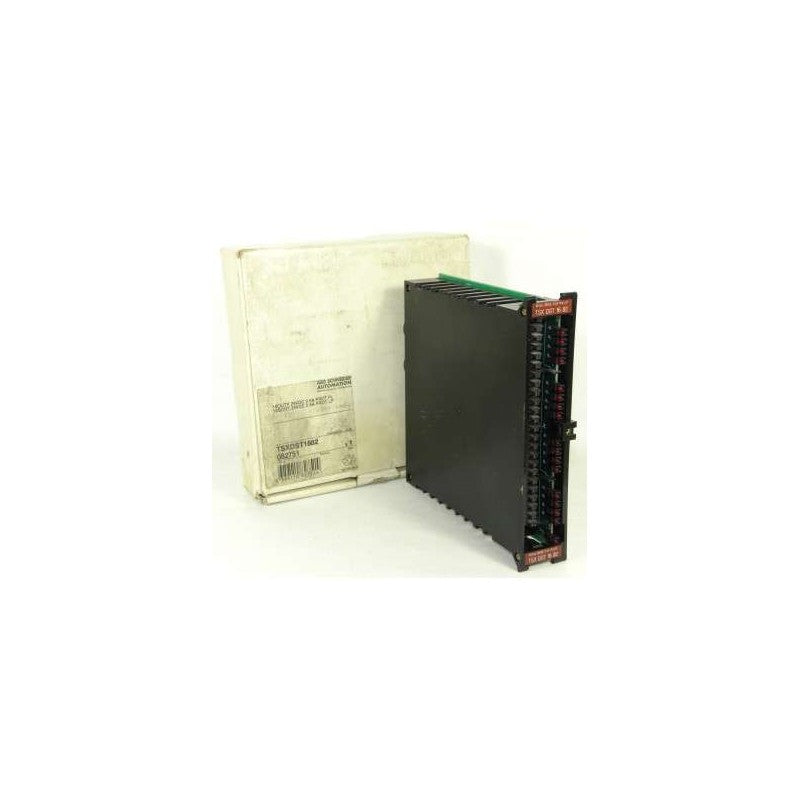

The Schneider Electric TSXDST1682 is a Telemecanique output module designed for discrete control applications. This module provides 16 digital outputs, each capable of switching 24 VDC at a maximum of 0.5 amps. It is a component commonly integrated into Modicon TSX series automation systems for controlling actuators and indicators in various industrial processes.

Technical details

• Series: Telemecanique TSX Series
• Output Type: Digital Output
• Number of Outputs: 16
• Output Voltage: 24 VDC
• Maximum Output Current per Channel: 0.5 Amps
• Module Form Factor: Designed for integration into Modicon TSX racks or compatible enclosures.
• Isolation: Typically features channel-to-logic isolation for enhanced system protection.
• Compatibility: Designed for use with Schneider Electric Modicon TSX PLCs and associated I/O bases.

Applications & compatibility

This output module is suitable for a wide range of industrial automation tasks requiring direct control of low-voltage DC devices. Common applications include controlling solenoid valves, indicator lights, relays, and small motor contactors on packaging machinery, material handling systems, and assembly lines.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TSXDST1682 or contact our technical team for cross-reference assistance with compatible Telemecanique components.
