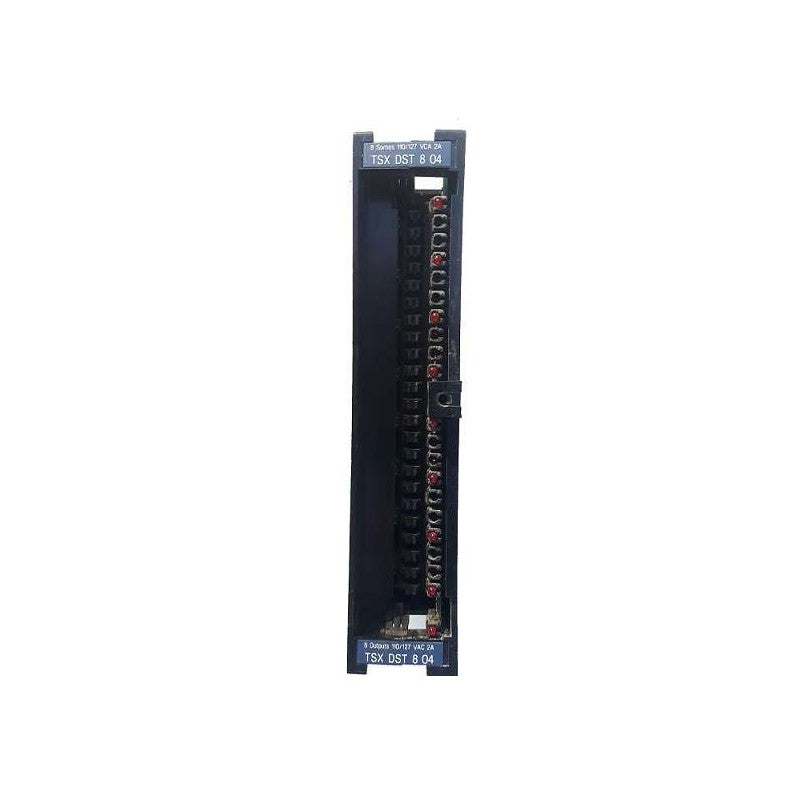

The Schneider Electric TSXDST804 is an output module designed for the TSX Series 7 PLC system. This module provides 8 outputs and operates on a 110/127 VAC power supply, making it suitable for integration into various industrial control applications requiring discrete output control.

Technical details

• Series: TSX Series 7
• Module Type: 8-Point Output Module
• Voltage Rating: 110/127 VAC
• Number of Outputs: 8
• Form Factor: Designed for TSX Series 7 rack mounting
• Functionality: Provides electrical isolation for output signals
• Compatibility: Designed for use with Schneider Electric TSX Series 7 PLCs
• Terminal Type: Screw terminals for output connections

Applications & compatibility

This output module is commonly employed in automation systems for controlling actuators, relays, solenoids, and indicator lights. It is well-suited for applications within manufacturing environments, including assembly lines, material handling systems, and process control where reliable discrete output switching is essential.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TSXDST804 or contact our technical team for cross-reference assistance with compatible TSX Series components.
