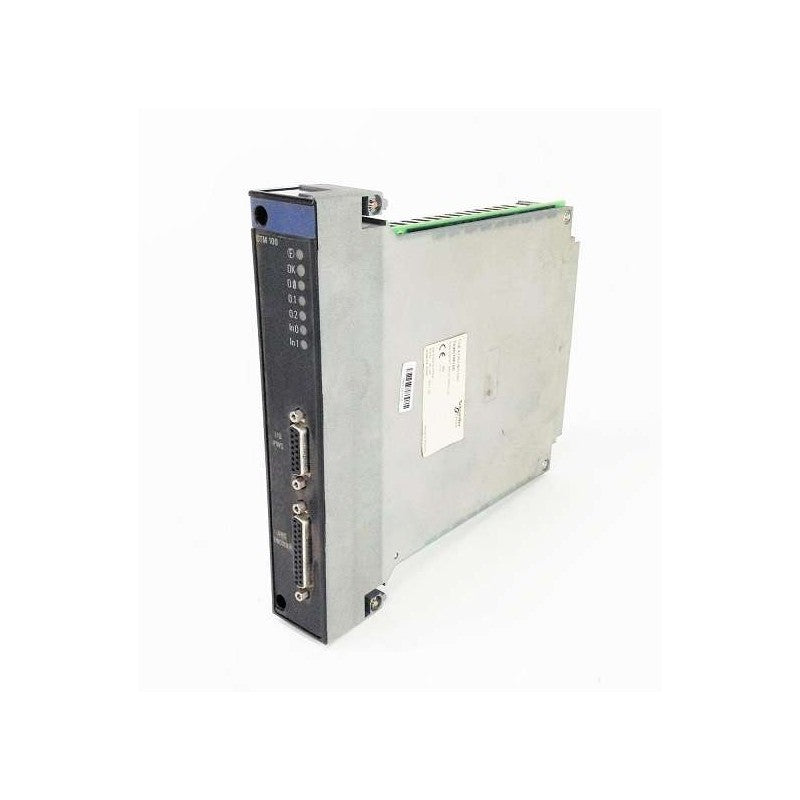

The TSXDTM100 from Schneider Electric's Telemecanique brand is an ABS count input module designed for high-speed counting applications within industrial automation systems. This module is a component of the Modicon TSX series, commonly integrated into PLC systems for precise event tracking and control.

Technical details

• Series: Modicon TSX
• Module Type: ABS Count Input Module
• Functionality: High-speed counter
• Input Type: ABS (Absolute) encoder input
• Compatibility: Designed for integration with Schneider Electric Modicon TSX series PLCs. Specific compatibility should be verified against the target PLC's I/O specifications.
• Form Factor: Typically designed for DIN rail mounting within Modicon TSX racks.
• Power Requirements: Voltage and current specifications are not explicitly defined by the part number and should be confirmed via the manufacturer's datasheet.
• Communication Protocol: Module communicates with the PLC via the internal backplane bus of the Modicon TSX system.

Applications & compatibility

This count input module is essential for applications requiring precise measurement and tracking of physical events, such as in packaging machinery, material handling systems, and automated assembly lines. It is compatible with various Modicon TSX series PLC configurations, enabling accurate data acquisition for process control and monitoring.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TSXDTM100 or contact our technical team for cross-reference assistance with compatible Modicon TSX components.
