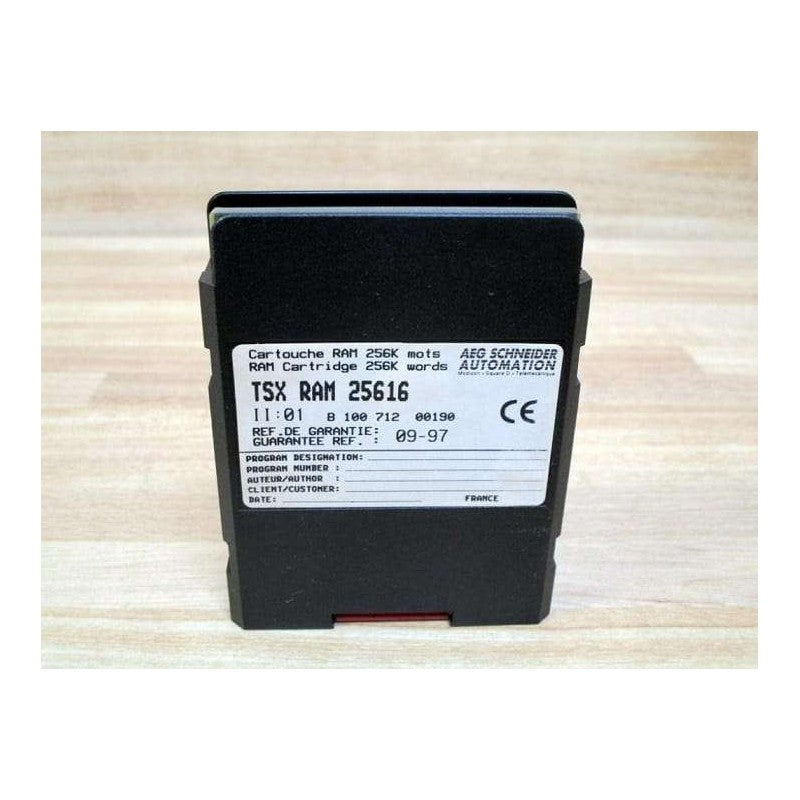

The Schneider Electric TSXRAM25616 is a communications memory RAM cartridge designed for use within the Modicon TSX Premium series PLCs. This module provides 256K words of memory, crucial for storing program logic, data tables, and communication configurations within the PLC system. It is engineered to enhance the data handling and operational capacity of the TSX Premium automation platform.

Technical details

• Series: Modicon TSX Premium
• Memory Capacity: 256K words
• Type: Communications Memory RAM Cartridge
• Functionality: Stores PLC program logic, data tables, and communication parameters.
• Form Factor: Cartridge module for direct insertion into TSX Premium PLC racks.
• Protocol Support: Designed to interface with the internal communication bus of the TSX Premium series.
• Voltage Compatibility: Operates within the standard voltage requirements of the Modicon TSX Premium system.
• Data Retention: RAM technology requires continuous power for data retention; refer to manufacturer datasheet for specific battery backup requirements if applicable.

Applications & compatibility

This RAM cartridge is specifically designed for the Schneider Electric Modicon TSX Premium PLC family. It is commonly deployed in industrial automation systems requiring expanded memory for complex control programs and data logging. Applications include process control, discrete manufacturing, material handling, and building automation where the TSX Premium platform is utilized.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the TSXRAM25616 or contact our technical team for cross-reference assistance with compatible TSX Premium components.
