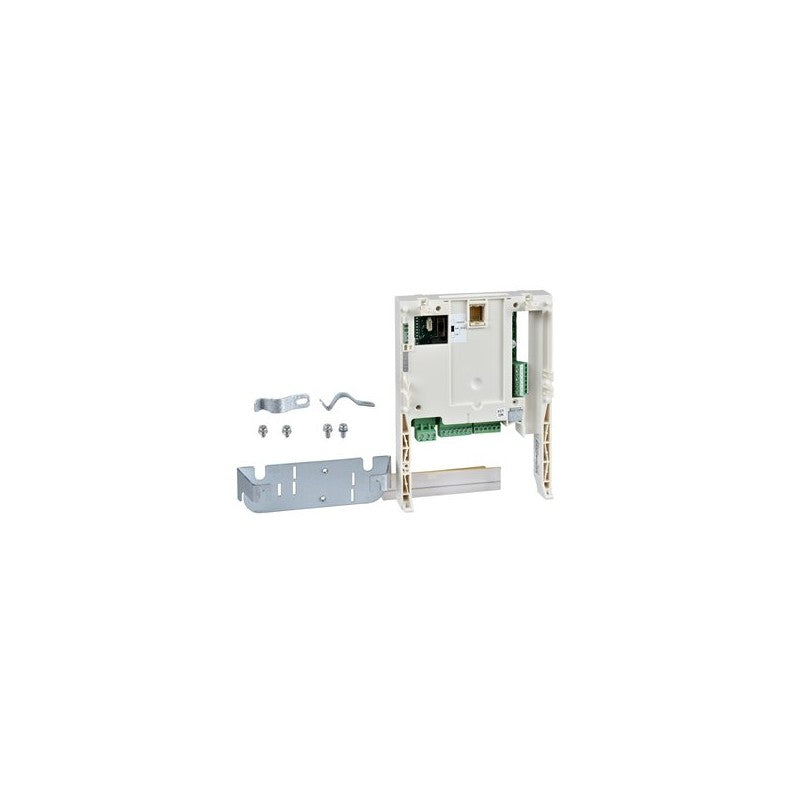

The Schneider Electric VW3A3202 is an extended I/O card designed to enhance the functionality of the ATV61 and ATV71 variable frequency drive (VFD) series. This module provides additional input and output terminals, allowing for more complex control and monitoring capabilities within automation systems. It is engineered to integrate seamlessly with the specified Schneider Electric drive platforms, expanding their operational scope.

Technical details

• Product Type: Extended Input/Output (I/O) Card
• Manufacturer Series Compatibility: Schneider Electric ATV61, Schneider Electric ATV71
• Functionality: Provides additional digital and analog inputs/outputs for expanded control and monitoring
• Communication Interface: Designed for direct integration with ATV61/ATV71 drive backplanes
• Form Factor: Module designed for installation within the drive enclosure
• Power Requirements: Draws power from the host drive; specific voltage and current draw should be verified against the drive's datasheet.
• Environmental Rating: Refer to the host drive's specifications for environmental operating conditions.

Applications & compatibility

This extended I/O card is crucial for applications requiring advanced control logic and external signal integration with Schneider Electric's ATV61 and ATV71 drives. It is commonly employed in complex machinery and process control systems found in industries such as material handling, water treatment, and HVAC, where precise external signal management is necessary for optimal performance.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A3202 or contact our technical team for cross-reference assistance with compatible ATV61/ATV71 system components.
