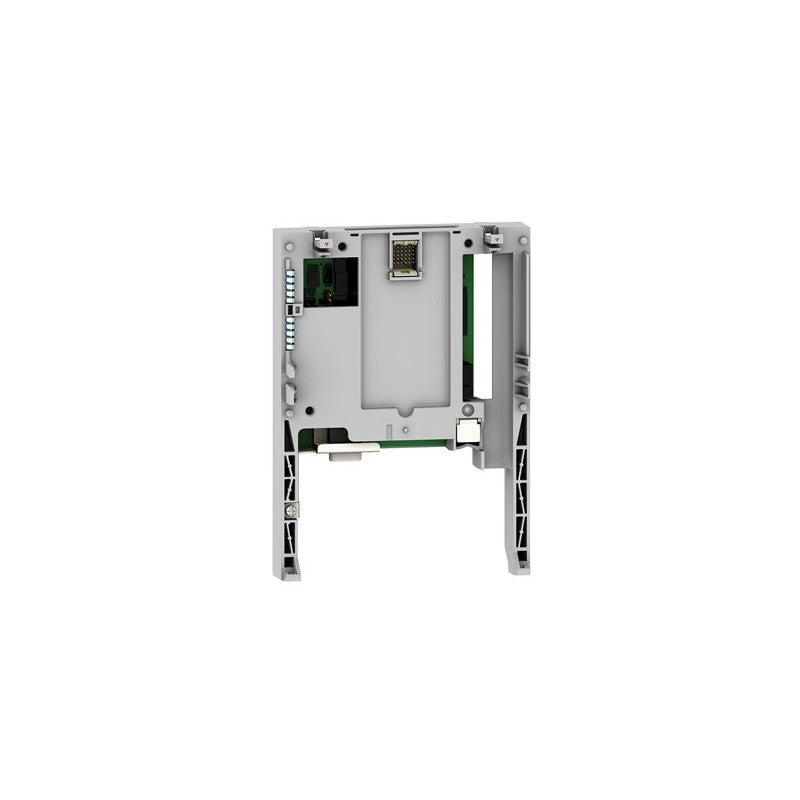

The Schneider Electric VW3A3307 is a Profibus DP communication card designed for integration into compatible Schneider Electric variable speed drives. This module facilitates high-speed data exchange within industrial automation networks, enabling advanced control and monitoring capabilities for machinery. It is commonly utilized in applications requiring robust communication protocols for synchronized operations and real-time diagnostics.

Technical details

• Communication Protocol: Profibus DP (Decentralized Peripherals)
• Manufacturer Series: Altivar Process (VW3 series designation)
• Functionality: Enables digital communication between the drive and a Profibus master controller.
• Data Transfer Rate: Supports standard Profibus DP baud rates (specific rates to be confirmed via manufacturer datasheet).
• Network Topology: Typically used in line or star network configurations.
• Diagnostic Capabilities: Provides status and diagnostic information from the drive to the master.
• Configuration: Requires configuration via Profibus GSD file and master system software.
• Power Requirements: Draws power from the drive's internal communication bus (specific voltage and current to be confirmed via manufacturer datasheet).

Applications & compatibility

This Profibus DP communication card is essential for integrating Schneider Electric Altivar Process drives into existing or new Profibus networks. It is widely deployed in industries such as automotive manufacturing, material handling, food and beverage processing, and water treatment, where precise motor control and network integration are critical for automated processes like conveyor systems, pumps, and fans.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A3307 or contact our technical team for cross-reference assistance with compatible Altivar Process drive components.
