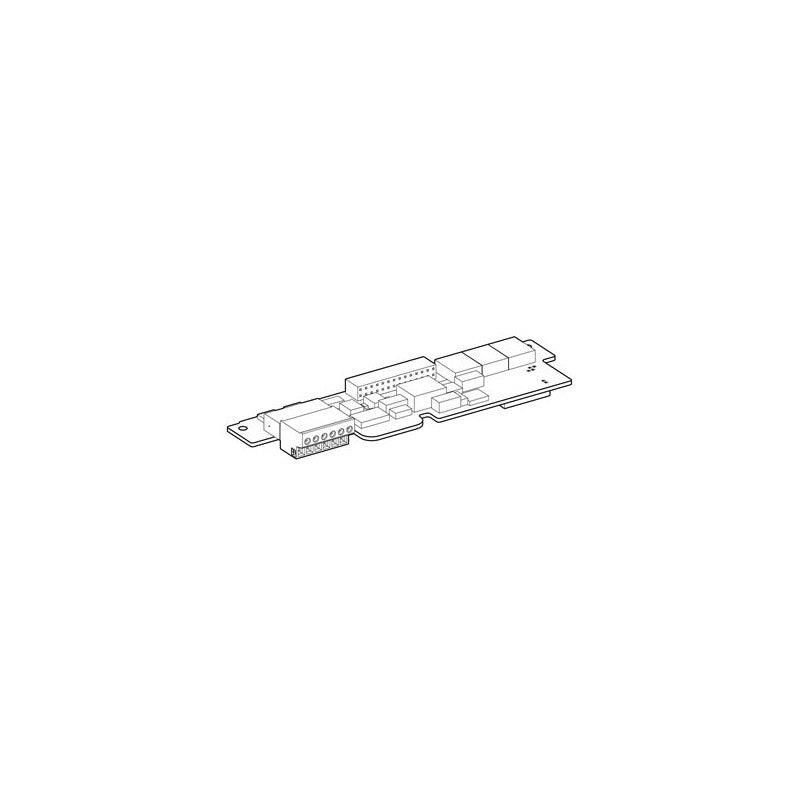

The Schneider Electric VW3A3402 is an encoder interface card designed for use with compatible Altivar variable frequency drives. This module facilitates the integration of encoder feedback into drive control systems, enabling precise speed and position regulation. It is engineered to provide robust performance in demanding industrial environments.

Technical details

• Manufacturer Series: Altivar
• Product Type: Encoder Interface Card
• Encoder Output Compatibility: RS422 differential outputs
• Power Requirement: 15 V DC
• Functionality: Enables encoder feedback for closed-loop control
• Data Transmission: Supports differential signal transmission for noise immunity
• Control System Integration: Designed for seamless integration with compatible Schneider Electric variable frequency drives

Applications & compatibility

This encoder interface card is commonly employed in applications requiring precise motion control, such as on packaging machinery, CNC machines, and automated assembly lines. It is compatible with specific models within the Schneider Electric Altivar drive family, allowing for enhanced performance in closed-loop servo and vector control configurations.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A3402 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
