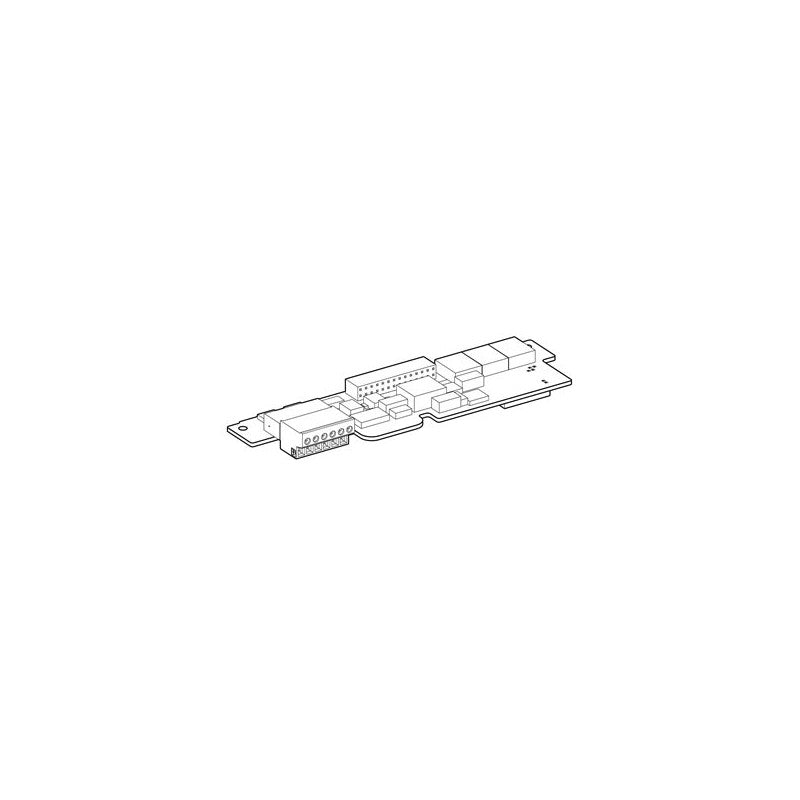

The Schneider Electric VW3A3403 is an encoder interface card designed for use with variable speed drives. This module facilitates the integration of encoder feedback into drive systems, enabling precise speed and position control. It is specifically engineered to provide encoder signal processing for applications requiring closed-loop motor control.

Technical details

• Series: Altivar Process (VW3A series)
• Functionality: Encoder Interface Card
• Output Type: Open Collector Outputs
• Operating Voltage: 12 V DC
• Encoder Compatibility: Supports incremental encoders
• Signal Processing: Provides quadrature signal processing for encoder feedback
• Mounting: Designed for installation within compatible Schneider Electric variable speed drives
• Communication: Facilitates closed-loop control by transmitting encoder data to the drive controller

Applications & compatibility

This encoder interface card is commonly employed in automation systems requiring precise motor control, such as on packaging machinery, CNC machines, and automated assembly lines. It is compatible with specific models within the Schneider Electric Altivar Process drive family, ensuring seamless integration for enhanced performance in demanding industrial environments.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A3403 or contact our technical team for cross-reference assistance with compatible Altivar Process components.
