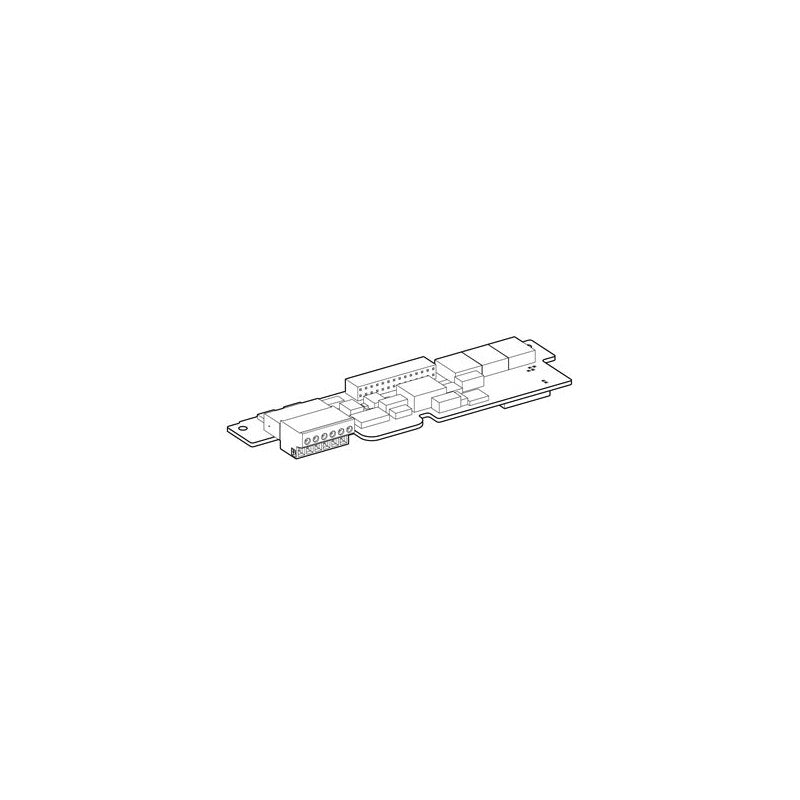

The Schneider Electric VW3A3409 is a universal encoder interface card designed for use with Altivar variable frequency drives. This module facilitates the integration of encoder feedback into drive systems, enabling precise speed and position control for demanding automation tasks. It is commonly employed in applications requiring closed-loop motor control to maintain accurate performance under varying load conditions.

Technical details

• Product Type: Universal Encoder Interface Card
• Manufacturer Series: Altivar (implied by VW3 prefix)
• Voltage Specification: 5 V (as stated in existing product information)
• Functionality: Provides encoder signal input for closed-loop control
• Compatibility: Designed for integration with compatible Schneider Electric Altivar variable frequency drives. Specific drive model compatibility should be verified against the manufacturer's datasheet.
• Encoder Type Support: Supports universal encoder types, allowing for flexibility in motor selection.
• Signal Processing: Processes incremental and absolute encoder signals for feedback.
• Mounting: Typically mounts within the drive chassis or as an option module.

Applications & compatibility

This encoder interface card is essential for applications demanding high-precision motor control, such as robotics, CNC machinery, automated material handling systems, and packaging equipment. Its compatibility with the Schneider Electric Altivar drive platform ensures seamless integration within existing automation architectures. Verify specific drive model compatibility with the manufacturer's documentation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A3409 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
