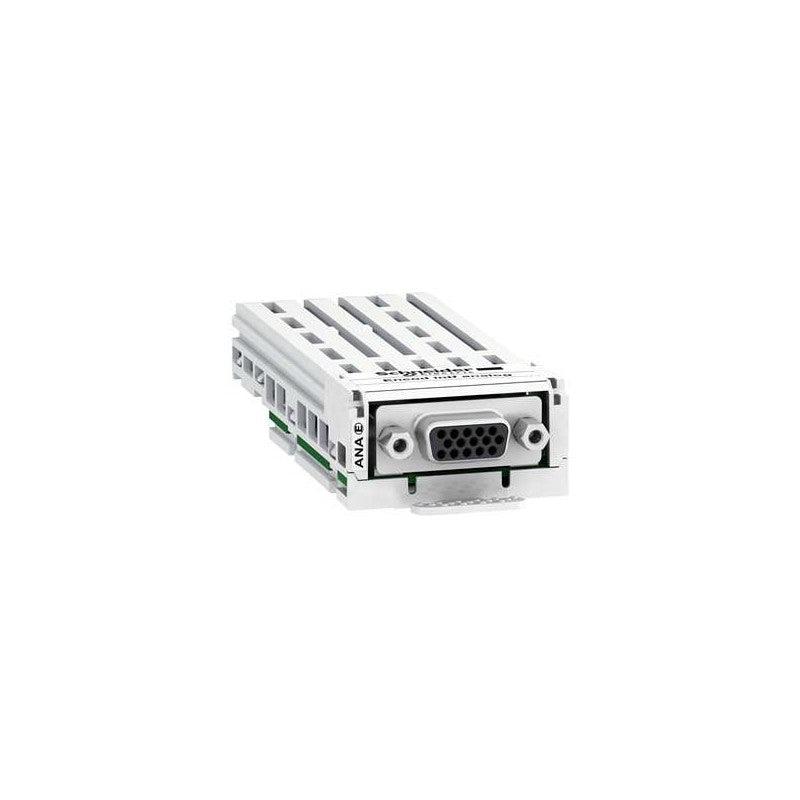

The Schneider Electric VW3A3422 is an analog encoder interface module designed to integrate encoder feedback into compatible variable speed drives. This module is part of the Altivar series, specifically intended for use with drives that require precise position or speed feedback for advanced control applications. It facilitates the conversion of analog encoder signals into a format usable by the drive's control system.

Technical details

• Manufacturer Series: Altivar
• Product Type: Analog Encoder Interface Module
• Functionality: Accepts analog encoder signals (e.g., ±10V) for speed or position feedback.
• Compatibility: Designed for use with specific Schneider Electric Altivar variable speed drives. Buyers should verify compatibility with their specific drive model.
• Signal Type: Analog
• Form Factor: Module designed for internal drive installation or external mounting depending on the drive system.
• Encoder Resolution Support: Capable of processing standard analog encoder resolutions. Specific resolution limits should be confirmed via the manufacturer's datasheet.
• Power Requirements: Typically powered by the host drive; specific voltage and current draw should be referenced from the drive's manual.

Applications & compatibility

This analog encoder interface module is commonly employed in applications demanding precise speed regulation or position control, such as in packaging machinery, CNC machines, and automated assembly lines. Its integration allows for closed-loop control, enhancing the accuracy and performance of motor-driven systems within the Altivar drive ecosystem.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A3422 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
