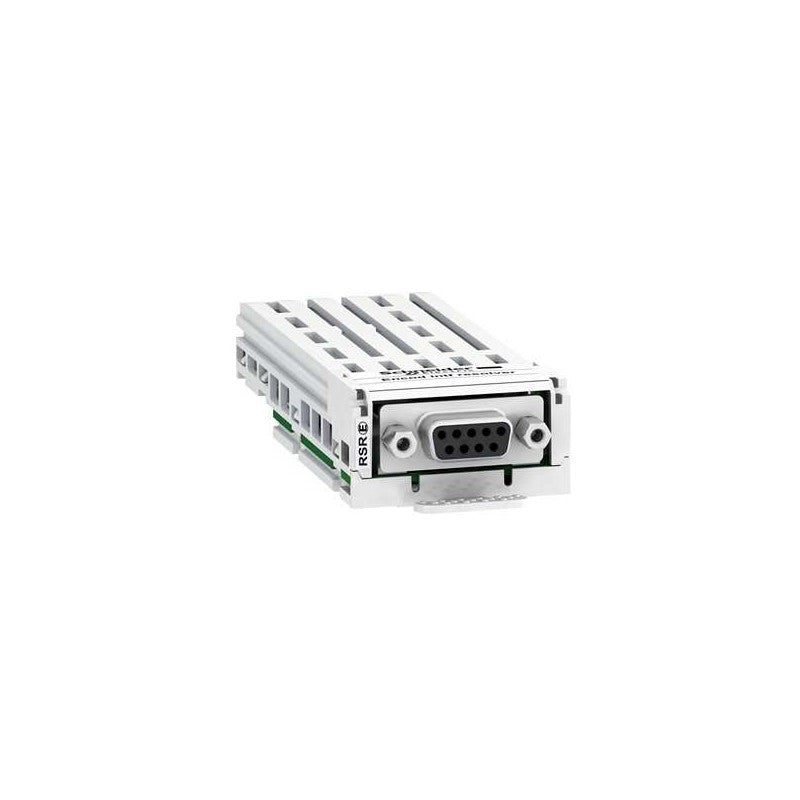

The Schneider Electric VW3A3423 is a resolver interface module designed for use with Altivar variable speed drives. This module facilitates the integration of resolver feedback devices into drive systems, enabling precise motor control and position feedback. It is commonly employed in applications requiring closed-loop control of AC induction motors and permanent magnet synchronous motors.

Technical details

• Series: Altivar
• Functionality: Resolver Interface Module
• Feedback Type: Resolver
• Compatibility: Designed for integration with specific Schneider Electric Altivar variable speed drives. Please consult the manufacturer's datasheet for a definitive list of compatible drive models.
• Power Requirements: Specific voltage and current requirements for module operation should be verified against the drive's specifications and the module's datasheet.
• Communication Protocol: Facilitates the transmission of resolver feedback data to the drive controller.
• Mounting: Typically designed for internal mounting within compatible Altivar drive enclosures.
• Environmental Ratings: Standard industrial operating temperature and humidity ranges apply. Refer to the datasheet for precise specifications.

Applications & compatibility

This resolver interface module is essential for applications demanding high-precision motor positioning and speed regulation. It finds extensive use in automated machinery, robotics, CNC machines, and material handling systems where accurate feedback is critical for performance and safety. Its compatibility is primarily with Schneider Electric's Altivar drive families that support external feedback modules.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A3423 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
