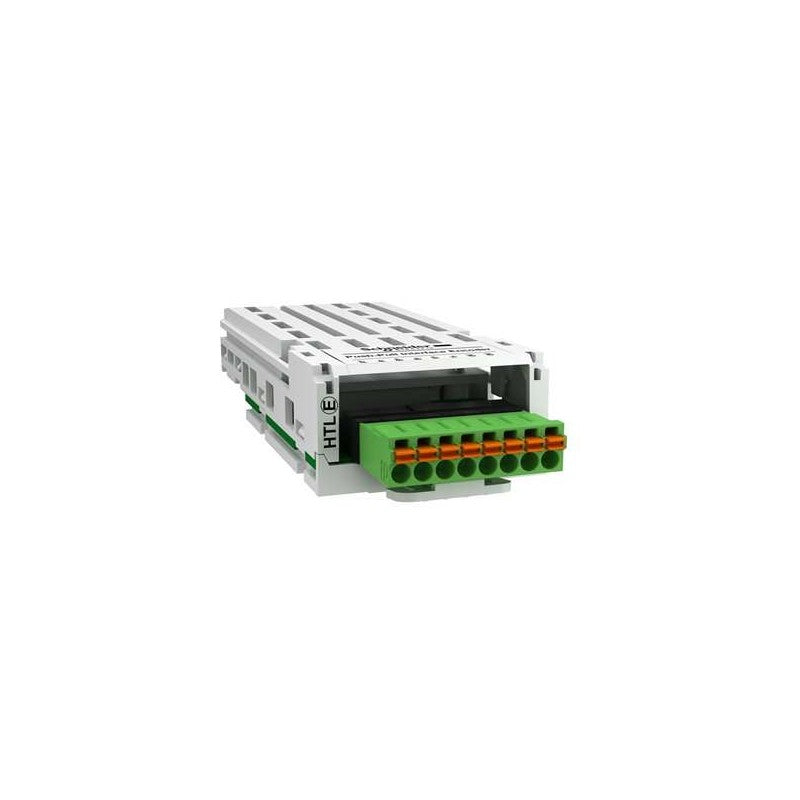

The Schneider Electric VW3A3424 is an HTL encoder interface module designed for use with Altivar variable frequency drives. This module facilitates the integration of high-resolution incremental encoders, enabling precise speed and position feedback for closed-loop control applications within industrial automation systems.

Technical details

• Series: Altivar
• Product Type: HTL Encoder Interface Module
• Functionality: Provides high-resolution encoder feedback for closed-loop control.
• Encoder Type Compatibility: Designed for High-Temperature Logic (HTL) encoders.
• Input Signal Type: Supports differential HTL signals.
• Output Signal: Typically provides encoder signal replication or conditioning for the VFD.
• Power Requirements: Refer to the Schneider Electric Altivar drive datasheet for specific module power requirements.
• Communication Protocol: Integrates directly with the internal communication bus of compatible Altivar drives.

Applications & compatibility

This encoder interface module is commonly employed in applications requiring precise motor control and positioning, such as packaging machinery, CNC machines, robotics, and automated material handling systems. It ensures accurate speed regulation and position holding when used with compatible Schneider Electric Altivar variable frequency drives.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A3424 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
