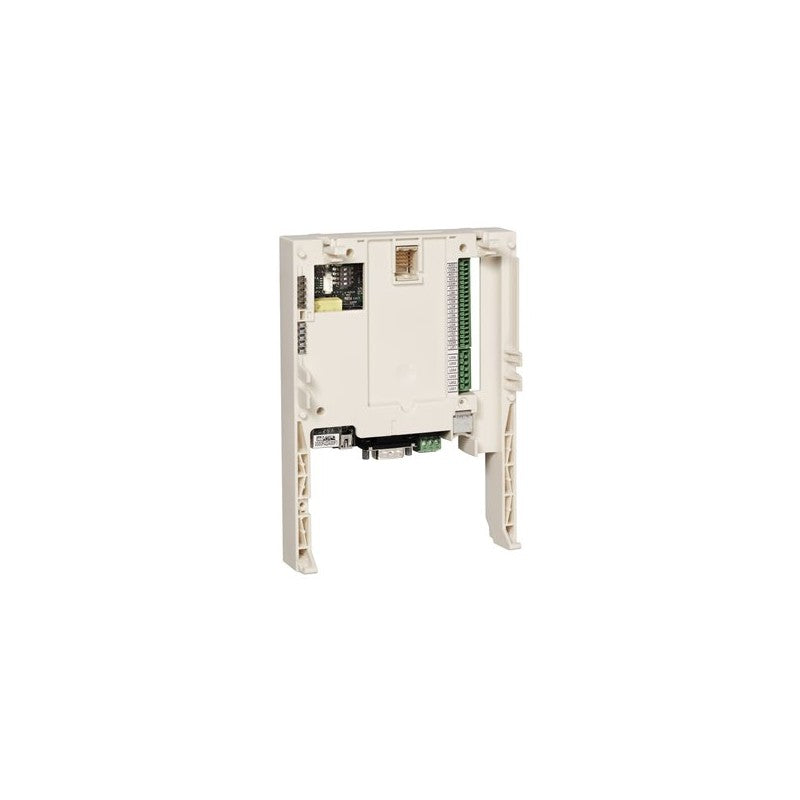

The Schneider Electric VW3A3521 is an ATV IMC drive controller card, identified as a Type G generic module. This component is designed to integrate with specific Schneider Electric variable speed drives, facilitating advanced control and communication within automation systems. Its generic nature suggests broad compatibility within the ATV series, offering a flexible solution for various motor control applications.

Technical details

• Series/Family: Altivar IMC (Integrated Motion Controller)
• Card Type: Type G Generic
• Functionality: Drive controller card
• Protocol Support: Verify specific communication protocols with manufacturer documentation; often supports Modbus RTU/TCP, EtherNet/IP, Profibus DP, or DeviceNet depending on the base drive.
• Voltage Class: Compatible with drives supporting the voltage class of the base ATV unit it is installed in.
• Power Rating: Not directly applicable to the card itself; dependent on the host drive's specifications.
• Form Factor: Internal module designed for installation within compatible Schneider Electric Altivar drives.
• Control Capabilities: Enables advanced motion control functions, parameter configuration, and communication management for the host drive.

Applications & compatibility

This controller card is commonly utilized in industrial automation environments requiring precise motor control and integrated communication. Applications include packaging machinery, material handling systems, CNC equipment, and other automated processes where advanced drive functionality is essential. Ensure compatibility with your specific Schneider Electric Altivar drive model by consulting the drive's user manual.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A3521 or contact our technical team for cross-reference assistance with compatible Altivar IMC components.
