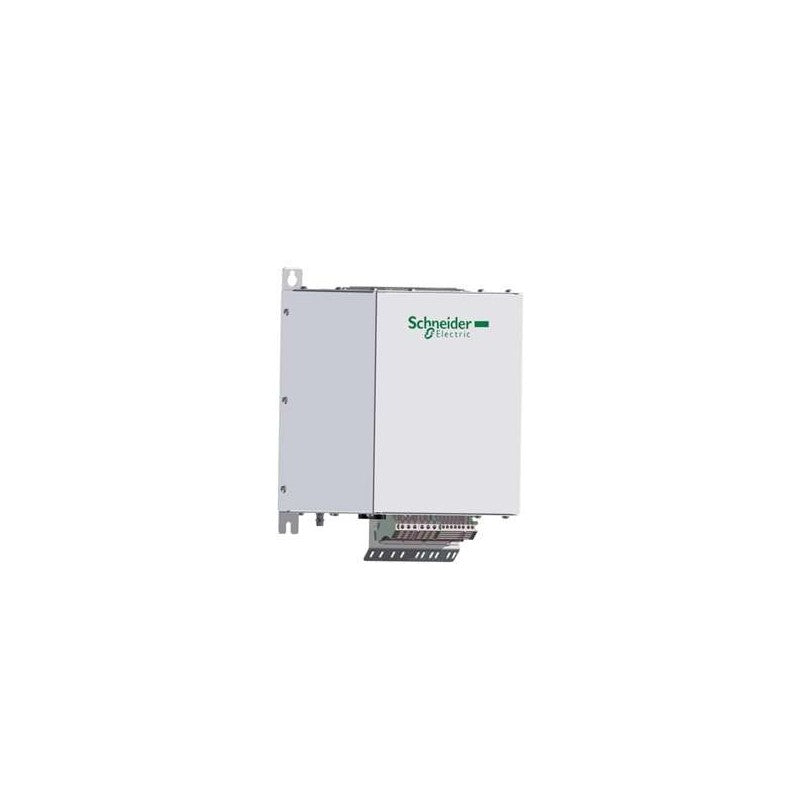

This Schneider Electric passive filter is designed to reduce harmonic distortion in variable speed drive systems. As part of the Schneider Electric Altivar series, this filter is engineered to enhance the performance and reliability of AC drives operating within specific voltage and current parameters. It is commonly integrated into industrial automation setups requiring clean power for motor control applications.

Technical details

• Product Type: Passive Filter
• Current Rating: 6 A
• Voltage Rating: 400 V
• Series Compatibility: Designed for use with Schneider Electric variable speed drives (specific model compatibility should be verified against manufacturer documentation).
• Function: Harmonic Distortion Reduction
• Construction: Industrial-grade components for demanding environments.
• Connection Type: Line-side connection for variable speed drives.
• Operating Frequency: Suitable for standard industrial power frequencies.

Applications & compatibility

This passive filter is essential for applications where power quality is critical, such as in food and beverage processing, material handling, and HVAC systems. It ensures optimal operation of variable speed drives in environments with sensitive electronic equipment or where compliance with harmonic distortion standards is required. Compatibility is primarily with Schneider Electric variable speed drives rated for 400V operation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A46101 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
