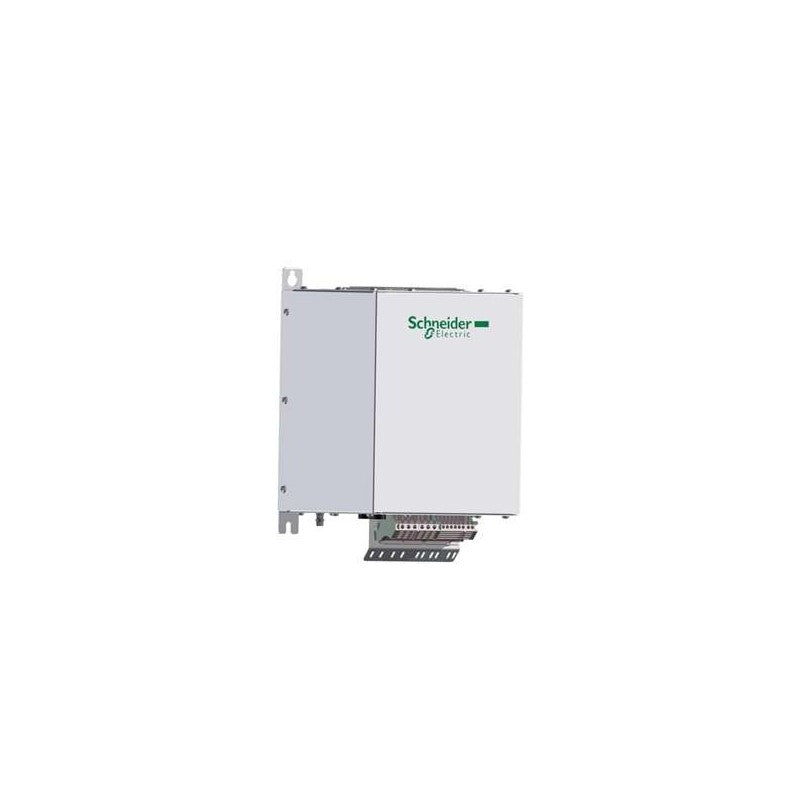

The Schneider Electric VW3A46103 is a passive filter designed to condition power for variable speed drives. This component is integral to ensuring the clean operation and longevity of motor control systems, particularly in applications requiring precise speed regulation and reduced electrical noise. It is engineered to meet the demands of industrial environments where power quality is critical for system performance.

Technical details

• Product Type: Passive Filter
• Current Rating: 15 A
• Voltage Rating: 400 V
• Frequency: 50 Hz
• Series Compatibility: Designed for use with Schneider Electric variable speed drives. Specific drive series compatibility should be verified against the manufacturer's datasheet.
• Function: Reduces harmonic distortion and electromagnetic interference (EMI) generated by variable speed drives, protecting downstream equipment and improving power factor.
• Construction: Typically features robust components for industrial environments. Specific construction details and dimensions should be confirmed with the manufacturer's documentation.

Applications & compatibility

This passive filter is commonly employed in industrial automation systems where variable speed drives are utilized for motor control. Applications include conveyor systems, packaging machinery, HVAC systems, and pump controls. Its primary function is to ensure that the power supplied to and from the variable speed drive meets stringent quality standards, thereby preventing premature component failure and ensuring reliable operation of the controlled equipment.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A46103 or contact our technical team for cross-reference assistance with compatible Schneider Electric variable speed drive components.
