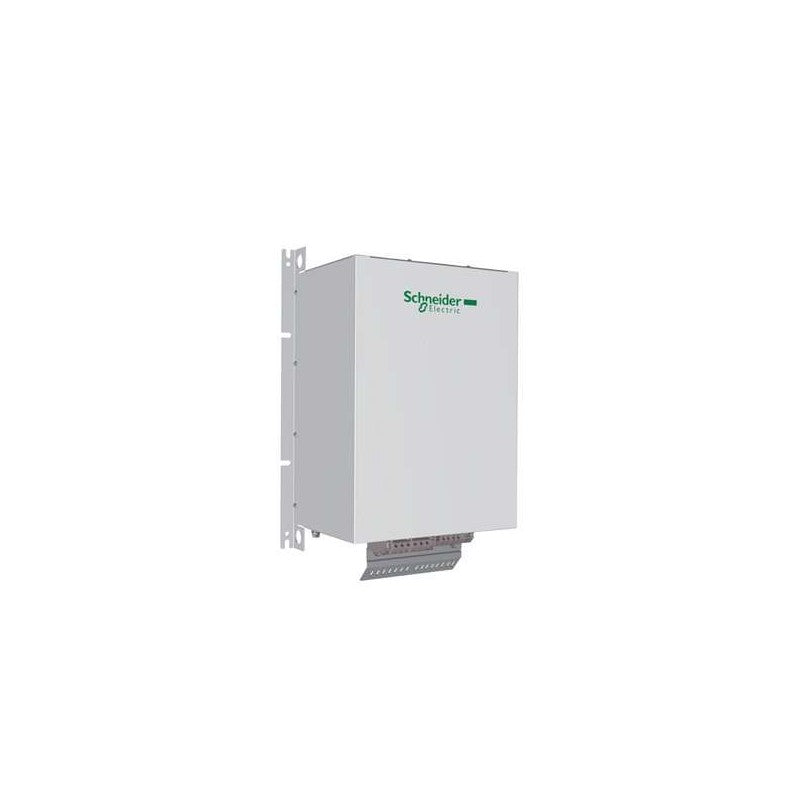

Schneider Electric's VW3A46107 is a passive filter designed to condition power for variable speed drives. This component is integral to ensuring the longevity and optimal performance of motor control systems by mitigating harmonic distortion and electromagnetic interference. It is engineered to operate within specific electrical parameters, making it a critical element in maintaining system stability and efficiency.

Technical details

• Product Type: Passive Filter
• Current Rating: 45 A
• Voltage Rating: 400 V
• Frequency: 50 Hz
• Series Compatibility: Designed for use with Schneider Electric variable speed drives. Specific drive series compatibility should be verified against the manufacturer's datasheet.
• Function: Reduces harmonic distortion and electromagnetic interference (EMI) generated by variable speed drives, protecting downstream equipment and improving power quality.
• Construction: Typically features robust industrial-grade components for reliable operation in demanding environments. Specific dimensions and materials should be confirmed via the manufacturer's specifications.

Applications & compatibility

The VW3A46107 passive filter is commonly deployed in industrial settings where variable speed drives are utilized to control motor speed and torque. This includes applications such as conveyor systems, pump and fan controls, HVAC systems, and general machinery automation. Its primary function is to ensure clean power delivery to the drive, thereby enhancing the reliability of the controlled equipment and reducing potential electrical noise issues.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A46107 or contact our technical team for cross-reference assistance with compatible Schneider Electric variable speed drive components.
