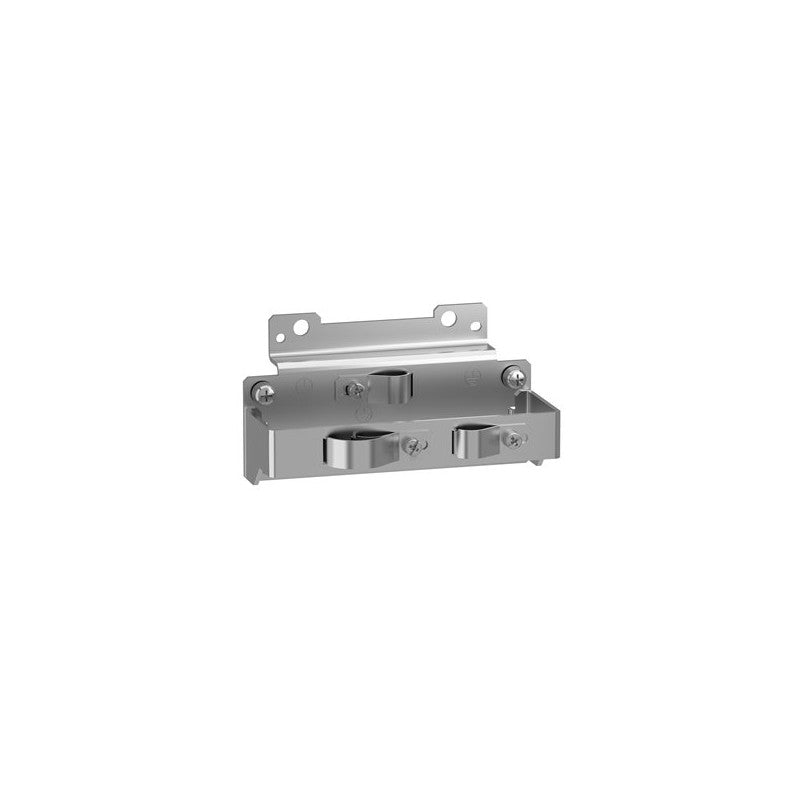

The Schneider Electric VW3A47801 is an EMC plate designed for use with variable speed drives. This accessory is part of the Altivar series, commonly integrated into motor control systems for applications requiring electromagnetic compatibility. The plate is specified for drive power ratings ranging from 0.75 kW up to 5.5 kW.

Technical details

• Series: Altivar
• Accessory Type: EMC Plate
• Compatible Drive Power Range: 0.75 kW to 5.5 kW
• Functionality: Provides electromagnetic compatibility (EMC) filtering for variable speed drives.
• Mounting: Designed for direct installation onto compatible Altivar drive chassis.
• Construction: Typically manufactured from conductive materials to effectively shield and dissipate electromagnetic interference.
• Environmental Rating: Refer to the specific drive's datasheet for environmental specifications when this plate is installed.

Applications & compatibility

This EMC plate is essential for applications where electromagnetic interference must be minimized, such as in sensitive control environments or where multiple electronic devices operate in close proximity. It is commonly found in automated manufacturing processes, including packaging machinery, material handling systems, and general industrial motor control applications where compliance with EMC directives is required.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A47801 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
