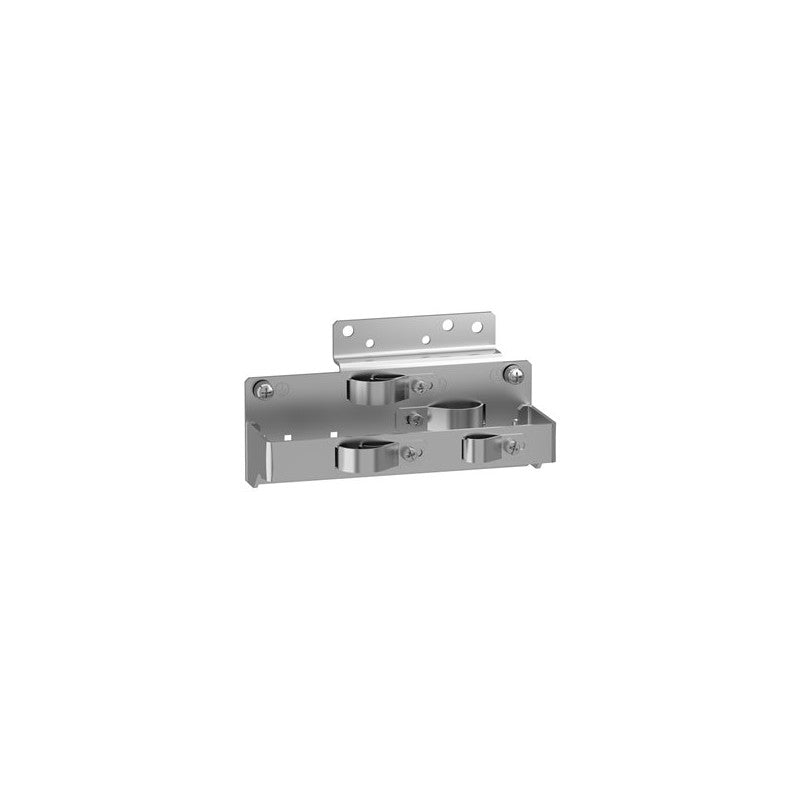

This EMC plate is designed for use with Schneider Electric Altivar variable frequency drives (VFDs). Specifically, the VW3A47802 is rated for applications requiring 7.5 kW or 11 kW power handling. It serves as a crucial component for mitigating electromagnetic interference in VFD installations, ensuring compliance with industrial standards and protecting sensitive equipment.

Technical details

• Manufacturer Series: Altivar
• Power Rating Compatibility: 7.5 kW and 11 kW
• Function: Electromagnetic Compatibility (EMC) Plate
• Purpose: Reduces electromagnetic interference (EMI) and radio frequency interference (RFI)
• Installation: Designed for direct mounting onto compatible Altivar VFD chassis
• Environmental Considerations: Helps maintain signal integrity in electrically noisy environments
• Compliance: Facilitates adherence to industrial EMC regulations

Applications & compatibility

The VW3A47802 EMC plate is essential for VFD installations in environments where electromagnetic emissions must be strictly controlled. This includes applications such as packaging machinery, material handling systems, pump and fan control, and general industrial automation where precise motor control and system reliability are paramount. It ensures that the Altivar drive operates without interfering with other electronic devices on the same network or in close proximity.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A47802 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
