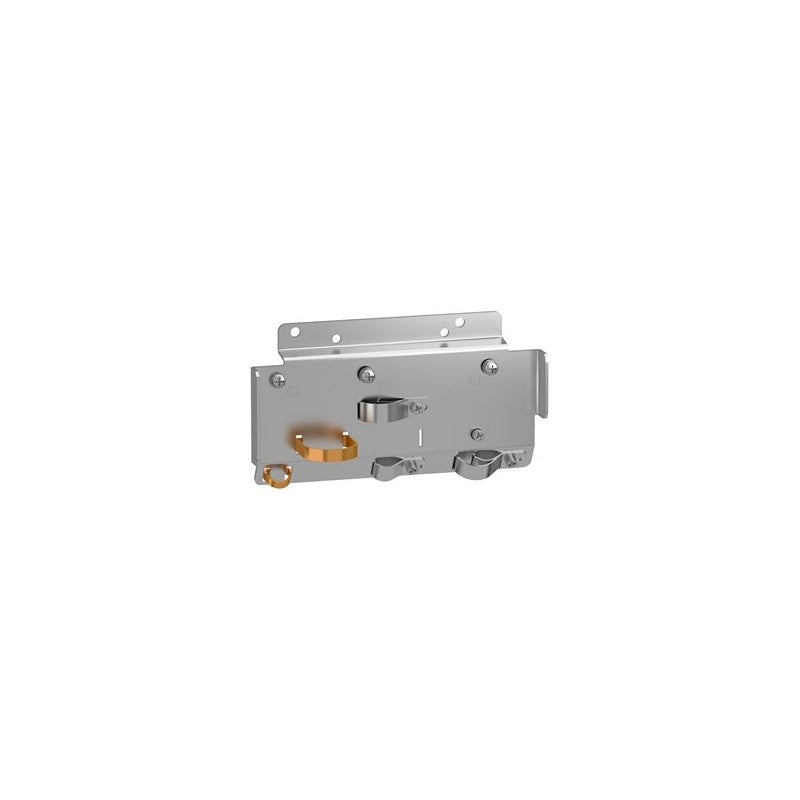

The Schneider Electric VW3A47803 is an EMC plate designed for use with variable speed drives. This accessory is engineered to mitigate electromagnetic interference, ensuring cleaner signal integrity within automated systems. It is specifically rated for applications requiring power handling capabilities between 15 kW and 22 kW, making it suitable for medium to heavy-duty industrial motor control scenarios.

Technical details

• Product Type: Electromagnetic Compatibility (EMC) Plate
• Manufacturer Series: Altivar (implied by VW3 prefix, common for Schneider Electric VFD accessories)
• Power Rating Compatibility: Suitable for variable speed drives rated from 15 kW up to 22 kW.
• Functionality: Designed to reduce electromagnetic emissions from variable speed drives.
• Construction: Typically manufactured from conductive materials to provide shielding.
• Mounting: Designed for direct attachment to compatible Schneider Electric variable speed drive enclosures.
• Environmental Considerations: Helps meet regulatory standards for electromagnetic compatibility in industrial environments.

Applications & compatibility

This EMC plate is commonly integrated into industrial automation systems where variable speed drives are employed for precise motor control. Applications include packaging machinery, material handling systems, pump and fan control, and general machine tool applications. Its compatibility is primarily with Schneider Electric Altivar variable speed drives within the specified 15 kW to 22 kW power range.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A47803 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
