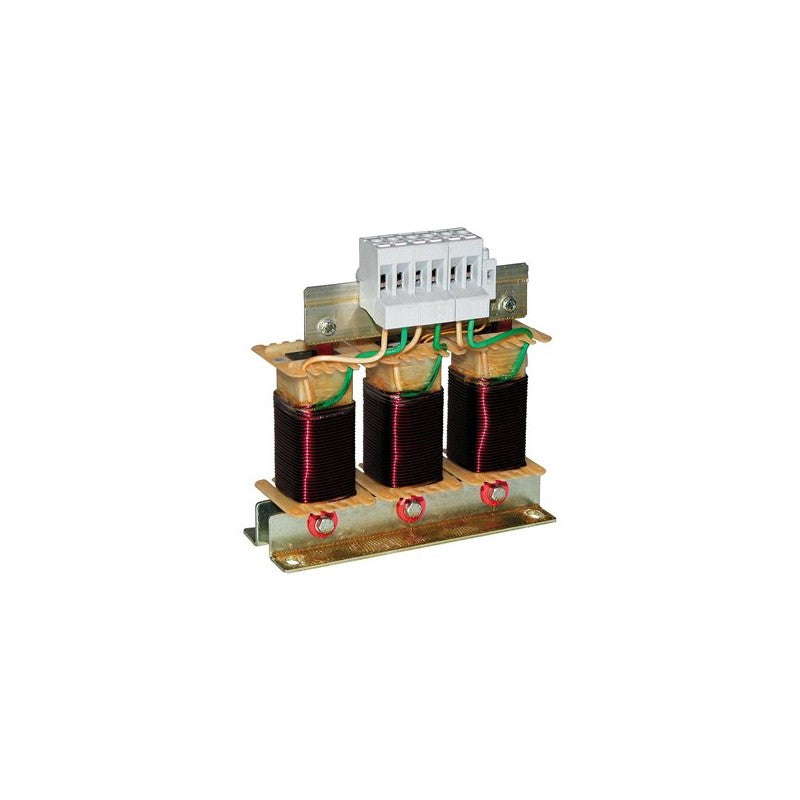

The Schneider Electric VW3A5102 is a motor choke designed for use with variable speed drives. This component is integral to ensuring the proper operation and longevity of AC drives by mitigating harmonic distortion and protecting the drive's power components from voltage spikes. It is specifically engineered to function within systems utilizing Schneider Electric's variable speed drive technology.

Technical details

• Product Type: Motor Choke
• Current Rating: 48 A
• Compatibility: Designed for use with variable speed drives
• Manufacturer Series: Altivar (implied by VW3 prefix, common for Schneider Electric variable speed drive accessories)
• Function: Reduces harmonic distortion and protects drive components from voltage transients
• Application: Power quality improvement for variable speed drive systems
• Construction: Typically features a laminated iron core with copper windings
• Installation: Designed for inline connection between the variable speed drive and the motor

Applications & compatibility

This motor choke is commonly employed in industrial automation environments where variable speed drives are utilized to control motor speed. Applications include conveyor systems, pump and fan control, packaging machinery, and material handling equipment. Its use is critical for maintaining power quality and ensuring the reliable performance of AC motor control systems.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A5102 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
