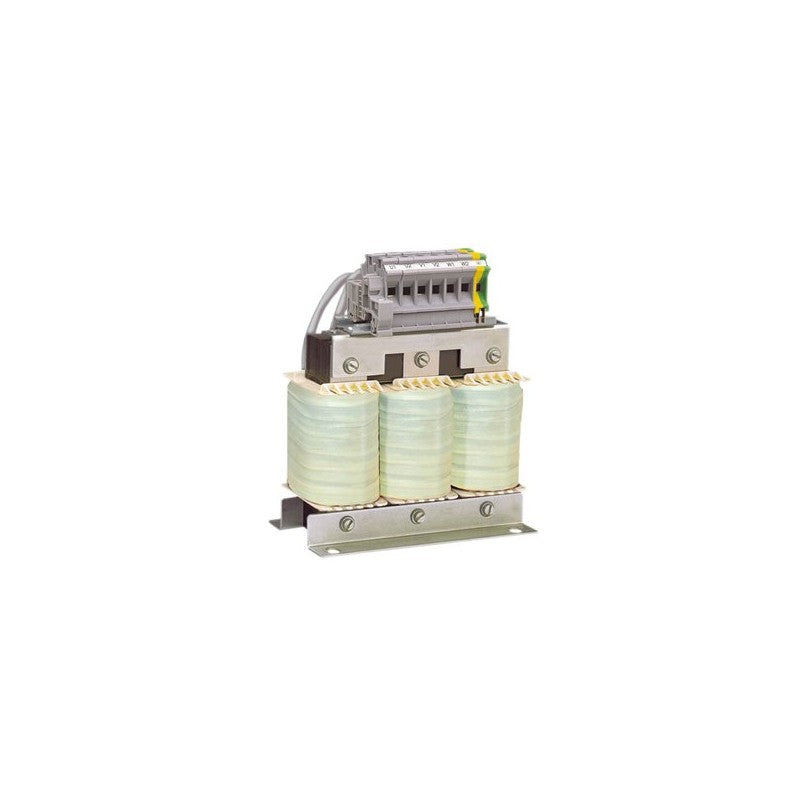

The Schneider Electric VW3A5107 is a motor choke designed for use with the Altivar variable speed drive series. This component is engineered to protect variable speed drives from voltage transients and harmonic distortion, ensuring reliable operation in demanding industrial environments. Its robust construction and specific design parameters make it suitable for integration into various motor control systems.

Technical details

• Product Type: Motor Choke
• Series Compatibility: Altivar Variable Speed Drives
• Current Rating: 759 A
• Enclosure Type: IP00 (Open chassis)
• Function: Harmonic suppression and transient voltage protection for motor circuits
• Application: Designed to reduce harmonic currents and protect VSDs from line notching and voltage spikes
• Construction: Features a core and winding assembly for impedance characteristics
• Mounting: Typically requires panel mounting within a drive enclosure

Applications & compatibility

This motor choke is commonly employed in applications requiring robust motor control and protection, such as heavy-duty industrial machinery, large pump and fan systems, and complex conveyor lines. It is specifically designed to enhance the performance and longevity of Schneider Electric Altivar variable speed drives in environments with significant harmonic distortion or unstable power grids.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A5107 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
