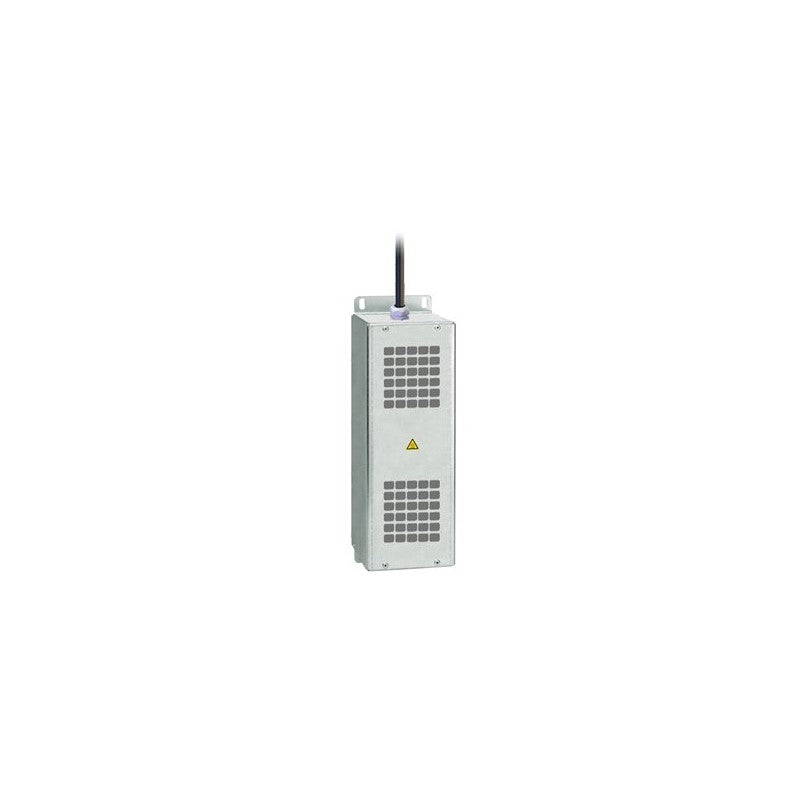

The Schneider Electric VW3A5201 is a sinus filter designed to condition the output waveform of variable speed drives. This component is integral to applications requiring clean power delivery and reduced electromagnetic interference, commonly found in sophisticated motor control systems. It specifically targets the Altivar variable speed drive series, ensuring compatibility and optimal performance within that ecosystem.

Technical details

• Product Type: Sinus Filter
• Current Rating: 11 A
• Compatible Drive Series: Altivar Variable Speed Drive
• Functionality: Reduces motor noise and voltage spikes, extends motor bearing life, and minimizes harmonic distortion.
• Construction: Designed for integration within drive enclosures or as an external accessory.
• Voltage Class: Specific voltage class should be verified against the manufacturer's datasheet for the intended Altivar drive model.
• Dimensions: Refer to the manufacturer's datasheet for precise physical dimensions.
• Protocol: Not applicable for this type of passive filter component.

Applications & compatibility

This sinus filter is essential for applications where motor noise, insulation stress, and electromagnetic compatibility are critical concerns. It is commonly deployed in packaging machinery, material handling systems, HVAC applications, and other industrial processes utilizing Altivar variable speed drives that require a cleaner output waveform for motor protection and system integrity.
