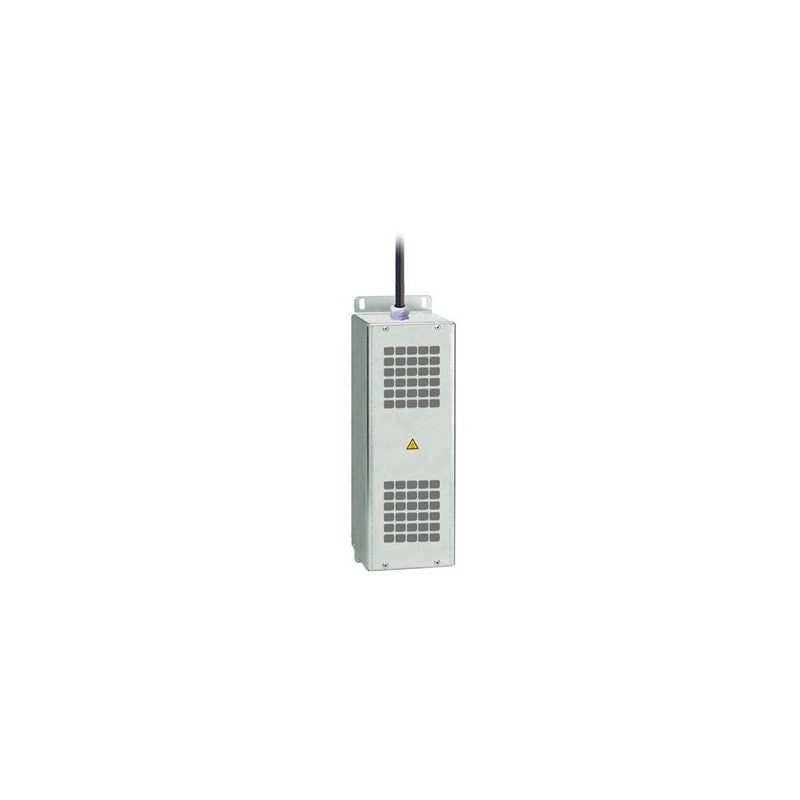

The Schneider Electric VW3A5204 is a sinus filter designed to condition the output waveform of variable speed drives. This component is integral to applications requiring clean power delivery and reduced electromagnetic interference, commonly found in sophisticated motor control systems. It is specifically engineered for use with the Altivar variable speed drive series, ensuring compatibility and optimal performance within that ecosystem.

Technical details

• Product Type: Sinus Filter
• Current Rating: 66 A
• Manufacturer Series Compatibility: Altivar Variable Speed Drives
• Function: Waveform conditioning and harmonic reduction
• Construction: Designed for industrial environments
• Purpose: Reduces motor insulation stress and audible noise
• Application Context: Motor output filtering

Applications & compatibility

This sinus filter is essential for applications where motor longevity and precise control are paramount. It is commonly deployed in demanding industrial environments such as packaging machinery, material handling systems, and pump and fan control applications utilizing Altivar drives. The VW3A5204 helps to extend the lifespan of motors by mitigating the effects of pulse width modulation (PWM) switching.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A5204 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
