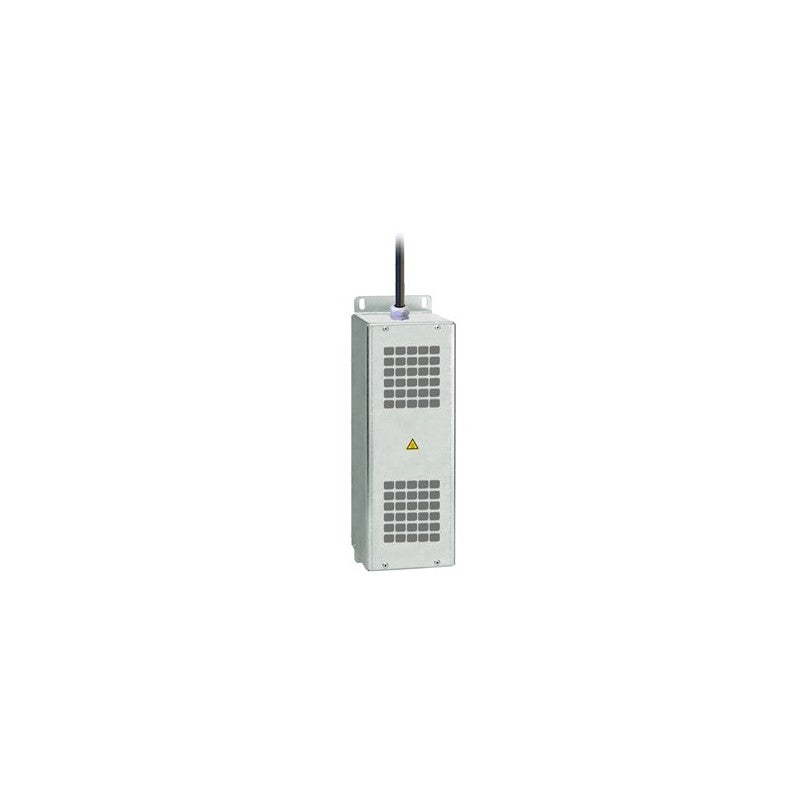

The Schneider Electric VW3A5205 is a sinus filter designed to condition the output waveform of variable speed drives. This component is integral to applications requiring reduced electromagnetic interference and improved motor performance, commonly found in sophisticated industrial automation systems. It specifically targets the Altivar variable speed drive series, ensuring compatibility and optimal operation within that ecosystem.

Technical details

• Product Type: Sinus Filter
• Current Rating: 95 A
• Compatible Drive Series: Altivar Variable Speed Drives
• Functionality: Reduces motor noise and voltage spikes, extends motor insulation life, and minimizes electromagnetic interference (EMI).
• Construction: Designed for integration within industrial control panels.
• Voltage Class: Specific voltage class should be verified against the manufacturer's datasheet for the intended Altivar drive model.
• Harmonic Distortion Reduction: Contributes to lower total harmonic distortion (THD) at the motor terminals.
• Motor Protection: Helps protect motor windings from premature failure due to voltage transients.

Applications & compatibility

This sinus filter is essential for applications where motor noise, EMI, and voltage stress are critical concerns. It is commonly deployed in packaging machinery, material handling systems, pump and fan control, and other variable speed drive applications that demand precise motor control and extended equipment lifespan. Ensure compatibility with your specific Altivar drive model by consulting the manufacturer's documentation.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A5205 or contact our technical team for cross-reference assistance with compatible Altivar components.
