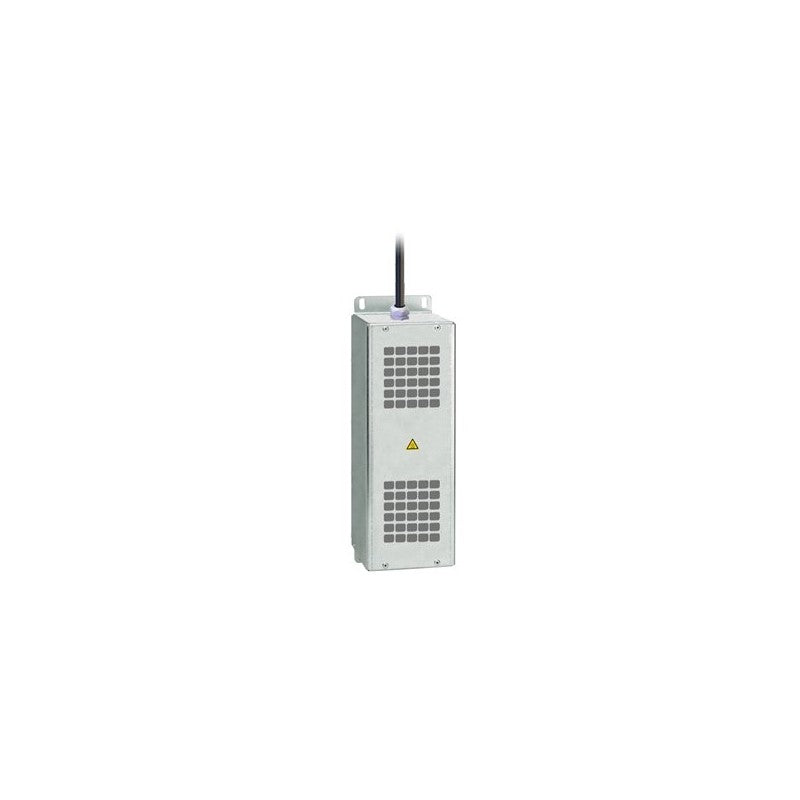

The Schneider Electric VW3A5206 is a sinus filter designed to condition the output waveform of variable speed drives. This component is integral to applications requiring reduced electromagnetic interference (EMI) and motor insulation stress, commonly found in sophisticated industrial automation systems. It specifically complements the Altivar variable speed drive series, ensuring optimal performance and longevity of connected motors.

Technical details

• Product Type: Sinus Filter
• Current Rating: 180 A
• Manufacturer Series Compatibility: Altivar Variable Speed Drives
• Functionality: Reduces motor voltage spikes and common-mode currents, mitigating EMI and protecting motor insulation.
• Waveform Conditioning: Shapes the output voltage waveform to approximate a pure sine wave, minimizing harmonic distortion.
• Motor Protection: Extends motor bearing and winding life by reducing electrical stress.
• System Integration: Designed for direct integration with compatible Altivar drive models.
• Operational Environment: Suitable for demanding industrial environments where precise motor control and protection are critical.

Applications & compatibility

This sinus filter is essential for applications utilizing Altivar variable speed drives where motor longevity and signal integrity are paramount. It is commonly deployed in systems such as high-speed packaging machinery, precision CNC equipment, complex conveyor systems, and other variable torque applications that benefit from reduced electrical noise and enhanced motor protection.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A5206 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
