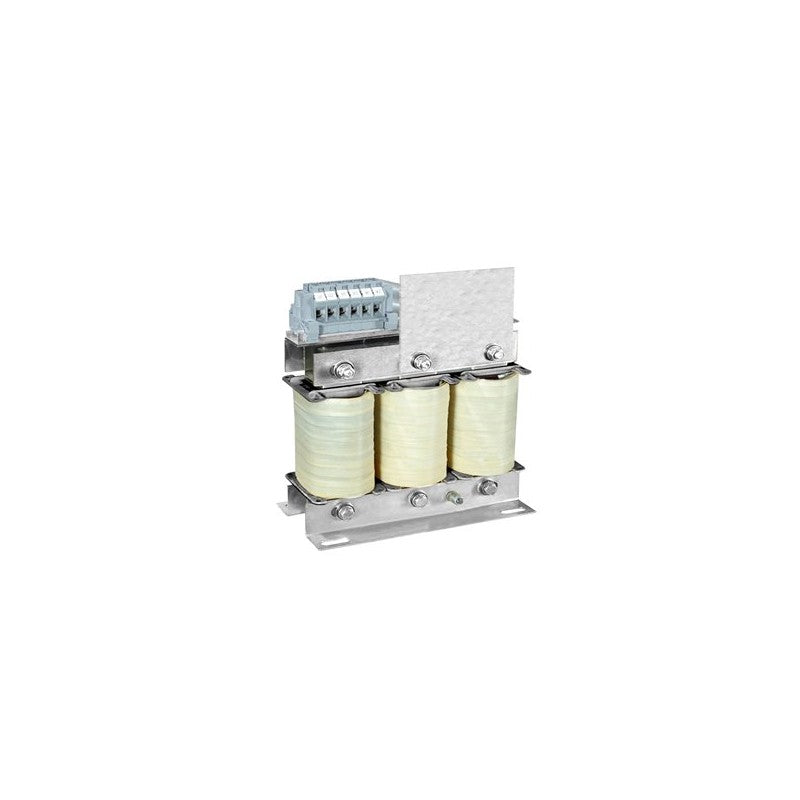

The Schneider Electric VW3A5209 is a sinus filter designed to condition the output waveform of variable speed drives. This component is integral to applications requiring clean power delivery and reduced electromagnetic interference, commonly found in sophisticated motor control systems. It is engineered to work with specific Altivar variable speed drive models, ensuring optimal performance and longevity of connected equipment.

Technical details

• Product Type: Sinus Filter
• Manufacturer Series: Altivar (compatible with specific models)
• Current Rating: 400 A
• Voltage Class: Designed for 400V class variable speed drives (verify specific drive compatibility)
• Functionality: Reduces motor voltage spikes and common-mode currents, filters high-frequency harmonics.
• Construction: Robust industrial design for demanding environments.
• Harmonic Distortion Reduction: Significantly lowers total harmonic distortion (THD) at the motor terminals.
• Motor Protection: Extends motor insulation life by mitigating voltage transients.

Applications & compatibility

This sinus filter is essential for applications where motor noise, insulation stress, and electromagnetic compatibility are critical concerns. It is commonly deployed in packaging machinery, material handling systems, HVAC applications, and other industrial processes utilizing Altivar variable speed drives that require enhanced motor protection and reduced electrical noise.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A5209 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
