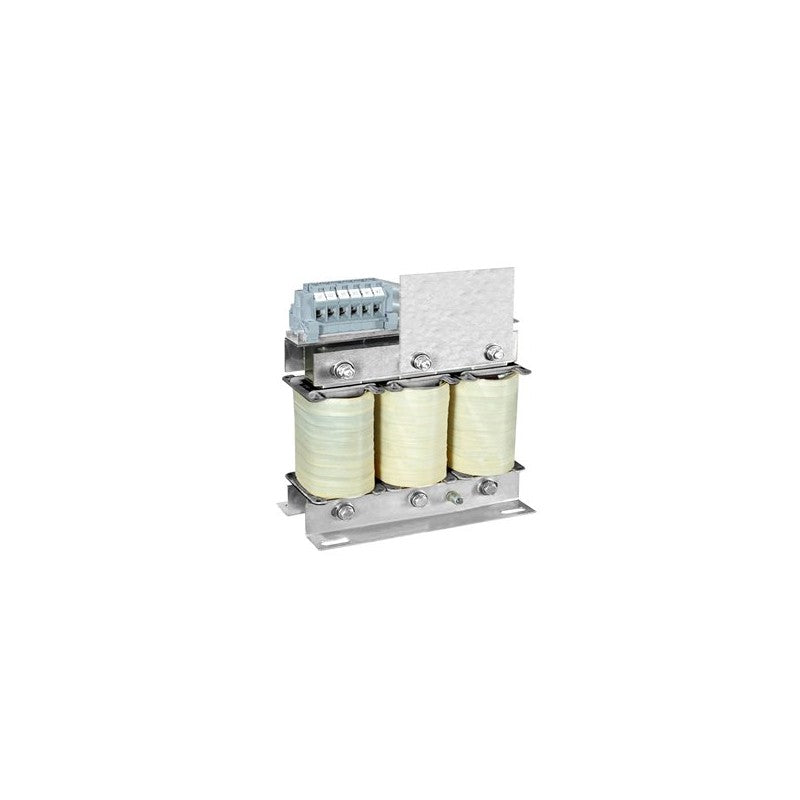

The Schneider Electric VW3A5210 is a sinus filter designed to condition the output waveform of variable speed drives, reducing electromagnetic interference and motor insulation stress. This component is integral to maintaining the longevity and reliable operation of Altivar variable speed drives in demanding industrial environments. Its inclusion helps ensure cleaner power delivery to the motor, contributing to overall system efficiency and performance.

Technical details

• Product Type: Sinus Filter
• Current Rating: 600 A
• Compatible Drive Series: Altivar Variable Speed Drives
• Functionality: Reduces motor insulation stress and electromagnetic interference (EMI)
• Waveform Conditioning: Shapes the output voltage waveform to approximate a pure sine wave
• Protection: Helps protect motor windings from voltage spikes and premature failure
• Installation: Designed for integration between the variable speed drive and the motor

Applications & compatibility

This sinus filter is commonly employed in applications requiring precise motor control and extended motor life, such as in heavy-duty machinery, pump and fan control systems, and complex conveyor belt operations. It is essential for environments where electrical noise can impact sensitive control systems or where motor insulation integrity is paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A5210 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
