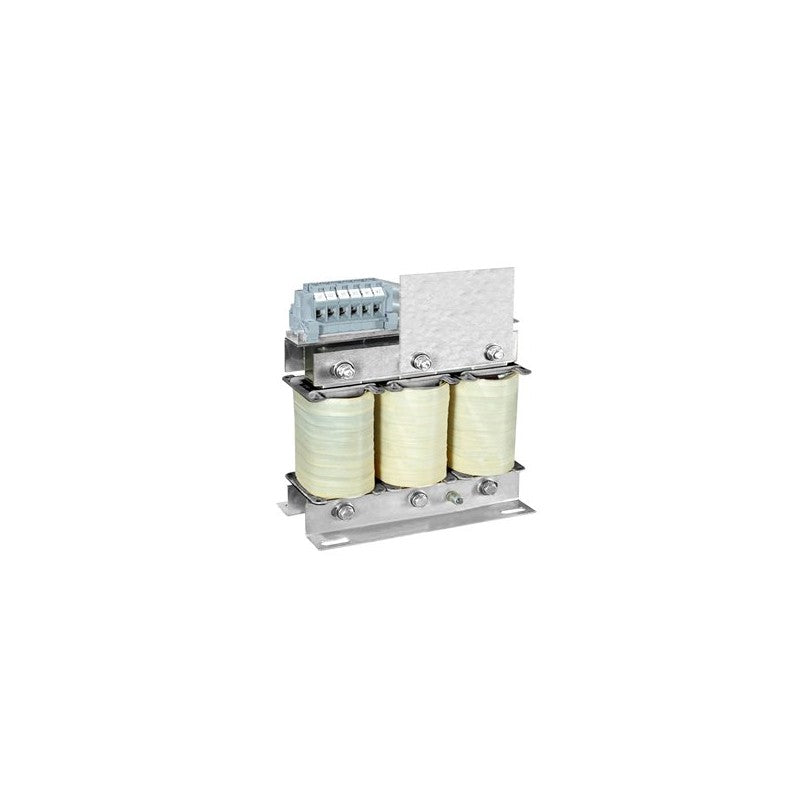

The Schneider Electric VW3A5211 is a sinus filter designed to condition the output waveform of variable speed drives. This component is integral to applications requiring reduced electromagnetic interference (EMI) and motor insulation stress, commonly found in demanding industrial environments. It is engineered to work with specific Altivar variable speed drive models, ensuring optimal performance and longevity of connected motor systems.

Technical details

• Product Type: Sinus Filter
• Manufacturer Series: Altivar (compatible accessory)
• Current Rating: 1200 A
• Functionality: Reduces motor terminal voltage spikes and common-mode currents.
• Waveform Conditioning: Approximates a pure sine wave output to the motor.
• EMI Reduction: Minimizes radiated and conducted electromagnetic interference.
• Motor Protection: Helps prevent premature motor insulation breakdown.
• Compatibility: Designed for use with specific Schneider Electric Altivar variable speed drives. Verify compatibility with your drive model via the manufacturer's datasheet.

Applications & compatibility

This 1200 A sinus filter is essential for applications where motor noise, EMI, and insulation stress are critical concerns. It is commonly deployed in heavy-duty industrial settings such as large pump and fan applications, complex conveyor systems, and machinery requiring precise motor control with extended motor life. Ensure verification of compatibility with your specific Altivar drive model.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A5211 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
