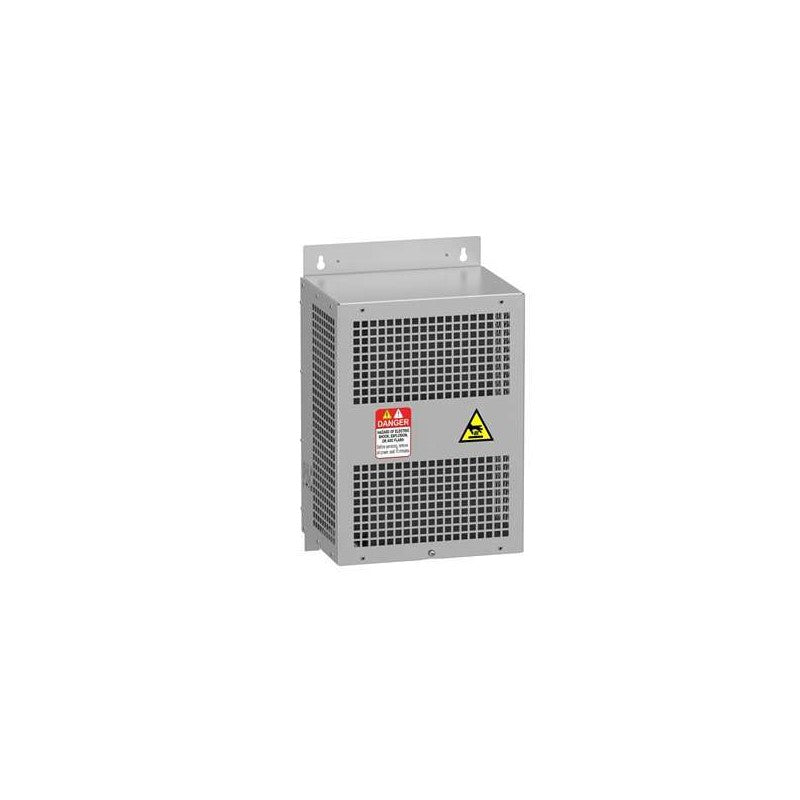

The Schneider Electric VW3A5301 is an output dv/dt filter designed for variable speed drive systems. This component is engineered to mitigate voltage spikes and reduce the rate of voltage rise at the output terminals of a variable frequency drive (VFD), thereby protecting motor insulation from premature degradation. It is commonly integrated into motor control panels for applications requiring extended motor lifespan and reliable operation.

Technical details

• Product Type: Output dv/dt Filter
• Manufacturer Series: Altivar (implied by VW3 prefix, common for Schneider Electric VFD accessories)
• Enclosure Rating: IP20
• Functionality: Reduces output voltage rise rate (dv/dt) to protect motor insulation.
• Application: Designed for use with variable speed drives (VFDs).
• Compatibility: Typically used with Schneider Electric Altivar variable speed drives. Specific model compatibility should be verified against the manufacturer's datasheet.
• Construction: Features a robust design suitable for industrial environments.
• Electrical Characteristics: Specific voltage and current ratings are dependent on the VFD model and motor configuration; consult the manufacturer's datasheet for precise specifications.

Applications & compatibility

This dv/dt filter is essential for applications where motors are driven by VFDs, particularly in environments with long cable runs or when using motors not specifically designed for VFD duty. Common applications include packaging machinery, conveyor systems, HVAC fans, and pump controls where motor longevity and operational reliability are paramount.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A5301 or contact our technical team for cross-reference assistance with compatible Schneider Electric Altivar components.
