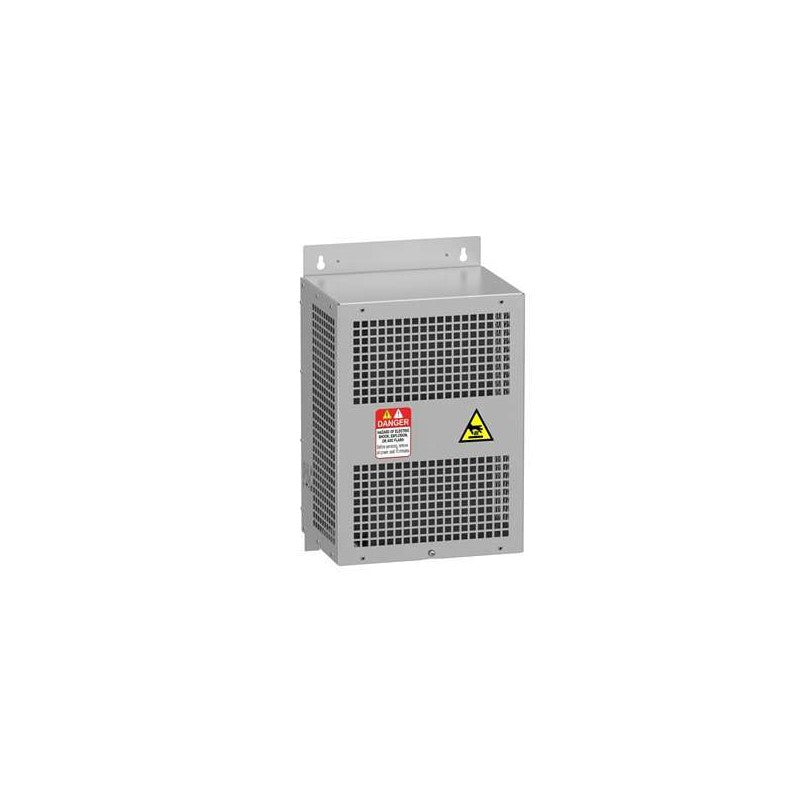

The Schneider Electric VW3A5302 is a dv/dt output filter designed for use with variable speed drives. This accessory helps to mitigate voltage spikes and reduce the rate of voltage rise at the motor terminals, thereby extending motor insulation life and reducing bearing currents. It is specifically engineered to complement Schneider Electric's Altivar variable speed drive product lines.

Technical details

• Product Type: Output dv/dt Filter
• Manufacturer Series: Altivar (implied by application context and Schneider Electric branding)
• Enclosure Rating: IP20
• Functionality: Reduces dv/dt and voltage spikes at the motor terminals
• Application: Designed for use with variable speed drives to protect motor insulation and bearings
• Compatibility: Verified compatibility with specific Schneider Electric Altivar drive models is recommended; consult manufacturer datasheet for precise integration details.
• Construction: Robust design suitable for industrial environments.

Applications & compatibility

This dv/dt filter is essential for applications where variable speed drives are used to control AC induction motors, particularly in environments with long motor cable lengths or where motor insulation is a concern. It is commonly deployed in packaging machinery, material handling systems, HVAC applications, and general industrial automation where motor longevity and reliable operation are critical.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A5302 or contact our technical team for cross-reference assistance with compatible Schneider Electric drive components.
