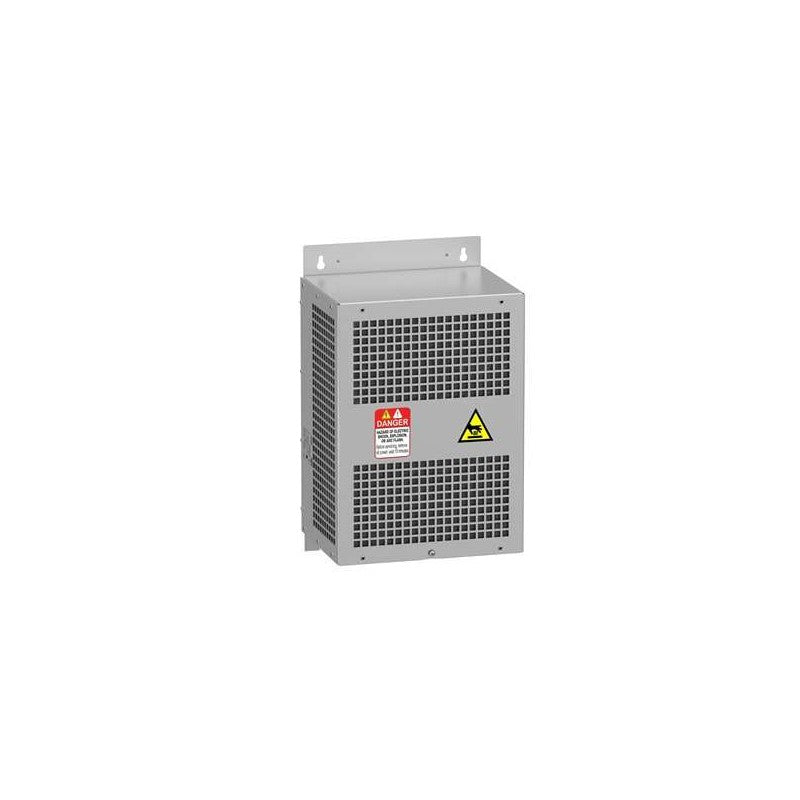

The Schneider Electric VW3A5303 is an output dv/dt filter designed for variable speed drive applications. This accessory helps to mitigate voltage spikes and reduce motor insulation stress, extending the lifespan of connected motors in demanding industrial environments. It is part of the Schneider Electric Altivar variable speed drive accessory line.

Technical details

• Product Type: Output dv/dt Filter
• Manufacturer Series: Altivar Accessory
• Protection Rating: IP20
• Functionality: Reduces motor insulation stress and voltage spikes caused by switching transients.
• Application: Designed for use with compatible Schneider Electric variable speed drives.
• Voltage Compatibility: Specific voltage class and power rating should be verified against the drive's datasheet and the filter's specifications.
• Dimensions: Specific dimensions are not provided in the existing information and should be confirmed with the manufacturer's datasheet.
• Protocol: Not applicable for this type of passive filter accessory.

Applications & compatibility

This dv/dt filter is essential for applications where variable speed drives are used to control motors, particularly in environments with long cable runs or when using motors not specifically designed for VFD operation. It is commonly found in packaging machinery, material handling systems, HVAC applications, and other industrial automation processes requiring precise motor speed control while protecting motor windings.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A5303 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
