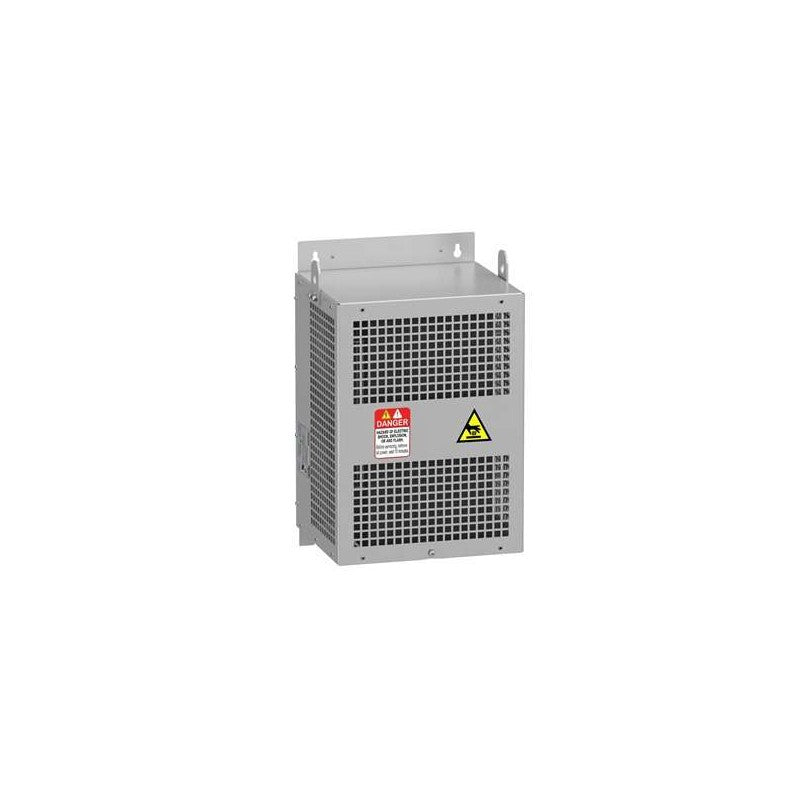

The Schneider Electric VW3A5304 is an output dv/dt filter designed for use with variable speed drives. This accessory helps to mitigate voltage spikes and reduce motor insulation stress, extending the lifespan of connected motors in demanding industrial environments. It is part of the Schneider Electric Altivar variable speed drive accessory range.

Technical details

• Product Type: Output dv/dt Filter
• Manufacturer Series: Altivar Accessory
• Protection Rating: IP20
• Functionality: Reduces motor insulation stress and voltage spikes
• Compatibility: Designed for use with compatible Schneider Electric variable speed drives. Specific drive model compatibility should be verified against the manufacturer's datasheet.
• Construction: Encased in a protective housing suitable for industrial environments.
• Electrical Characteristics: The specific voltage and current ratings for this filter are not explicitly defined by the part number alone. Buyers should consult the Schneider Electric datasheet for the VW3A5304 for precise electrical specifications and recommended drive pairings.

Applications & compatibility

This dv/dt filter is commonly employed in applications where variable speed drives are used to control motors over long cable runs or with motors that have higher insulation requirements. Typical applications include packaging machinery, conveyor systems, and pump and fan control in HVAC systems, helping to ensure reliable motor operation and reduce maintenance needs.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A5304 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
