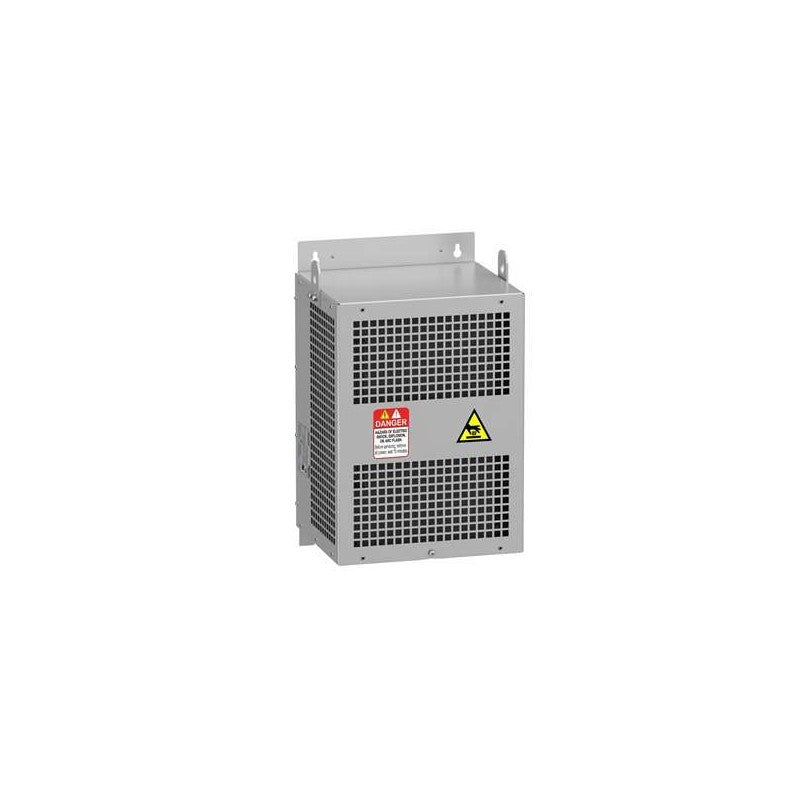

The Schneider Electric VW3A5305 is an output dv/dt filter designed for use with variable speed drives. This component helps to mitigate voltage spikes and reduce electromagnetic interference (EMI) generated by the switching action of the drive's output transistors, thereby protecting motor windings and extending motor life. It is specifically engineered to complement the performance of Schneider Electric's variable speed drive systems.

Technical details

• Product Type: Output dv/dt Filter
• Manufacturer Series: VW3A (compatible with Altivar drives)
• Enclosure Rating: IP20
• Functionality: Reduces output voltage rise time (dv/dt) and limits peak voltage
• Purpose: Protects motor insulation from voltage transients and reduces EMI
• Application: Designed for variable speed drive systems
• Compatibility: Verify compatibility with specific Schneider Electric variable speed drive models and motor specifications via the manufacturer's datasheet.

Applications & compatibility

This dv/dt filter is commonly employed in applications where variable speed drives are used to control AC induction motors, such as on packaging lines, conveyor systems, and in HVAC applications. Its integration helps ensure reliable motor operation and compliance with electromagnetic compatibility standards in environments sensitive to electrical noise. It is essential for applications requiring extended motor cable lengths or when using motors not specifically designed for inverter duty.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A5305 or contact our technical team for cross-reference assistance with compatible Schneider Electric drive components.
