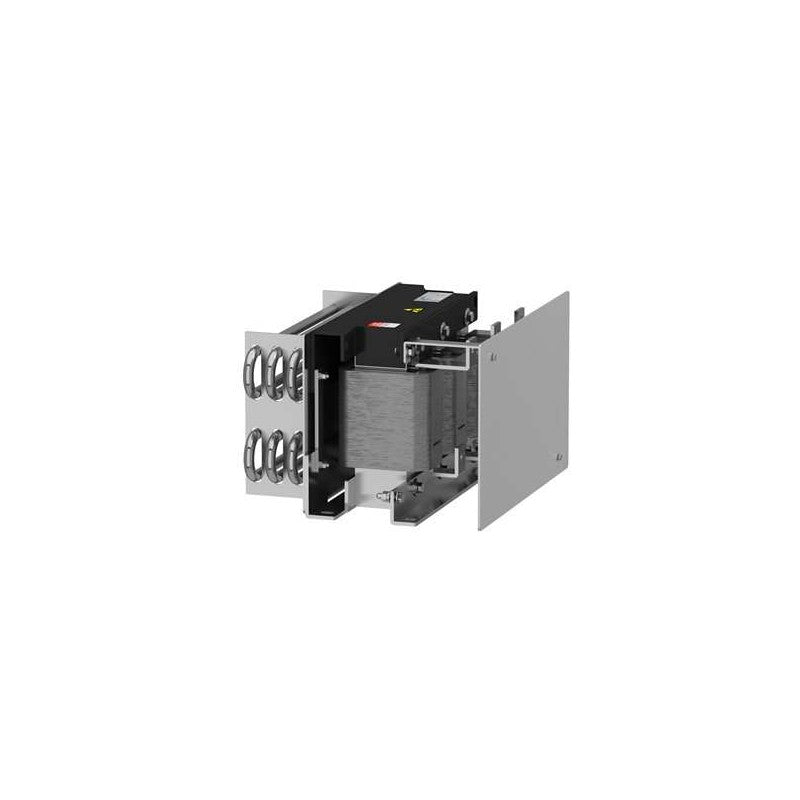

The Schneider Electric VW3A5307 is an output dv/dt filter designed for use with variable speed drives. This accessory helps to mitigate voltage spikes and reduce motor insulation stress, particularly in applications where the drive is located a significant distance from the motor. It is a crucial component for extending the lifespan of motors and ensuring reliable operation of variable frequency drive systems.

Technical details

• Product Type: Output dv/dt Filter
• Manufacturer Series: Altivar (implied by part number prefix VW3A)
• Protection Rating: IP00 (Open chassis, requires enclosure)
• Functionality: Reduces voltage rise rate (dv/dt) at the drive output terminals.
• Application Benefit: Protects motor insulation from transient overvoltages.
• Compatibility: Designed for use with compatible Schneider Electric variable speed drives. Specific drive model compatibility should be verified against the manufacturer's datasheet.
• Construction: Features robust internal components for industrial environments.

Applications & compatibility

This dv/dt filter is commonly employed in applications where variable speed drives are used to control motor speed over extended cable lengths. Typical installations include conveyor systems, pumps, fans, and other machinery found in manufacturing plants, water treatment facilities, and HVAC systems. Its use is particularly beneficial in preventing premature motor failure due to insulation breakdown caused by high dv/dt.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A5307 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
