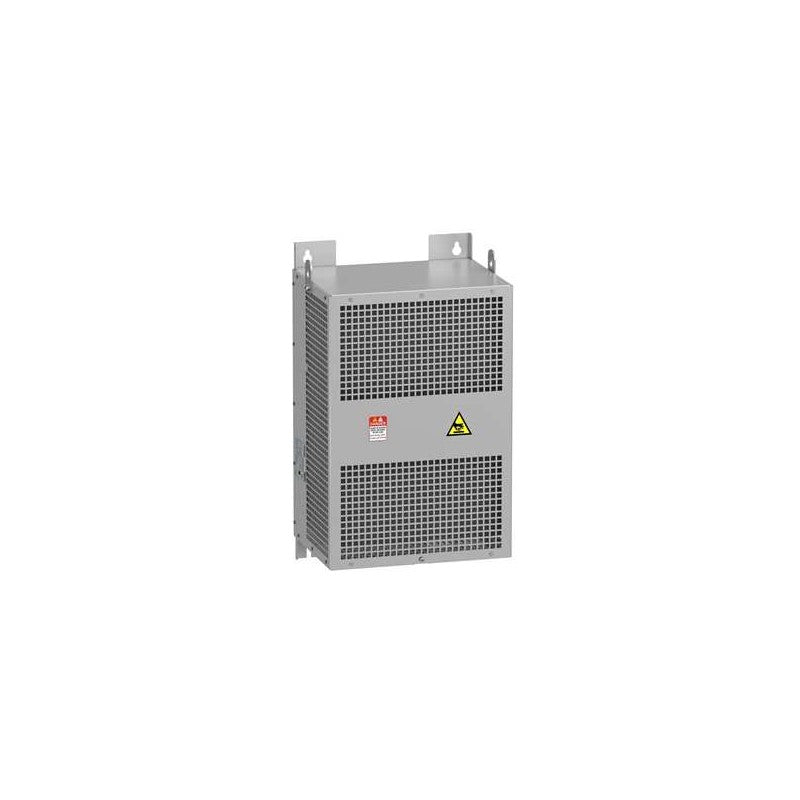

The Schneider Electric VW3A5405 is an output sine wave filter designed to condition the output of variable speed drives. This filter helps to reduce electromagnetic interference (EMI) and voltage spikes, protecting motor windings and extending the lifespan of connected equipment. It is engineered to work with specific variable speed drive models within the Schneider Electric Altivar series.

Technical details

• Product Type: Output Sine Wave Filter
• Manufacturer Series: Altivar (implied by application and manufacturer)
• Rated Current: 95 A
• Functionality: Reduces motor terminal voltage stress and EMI/RFI noise
• Waveform Output: Approximates a sine wave
• Compatibility: Designed for use with specific Schneider Electric variable speed drives (verify compatibility with drive model number)
• Construction: Robust design for industrial environments
• Protection: Mitigates dV/dt stress on motor insulation

Applications & compatibility

This output sine wave filter is commonly employed in applications requiring precise motor control and extended motor life, such as on packaging lines, conveyor systems, and in pump and fan control applications. It is essential for installations where long motor cable runs are present or where the variable speed drive is directly connected to standard induction motors.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A5405 or contact our technical team for cross-reference assistance with compatible Altivar drive components.
