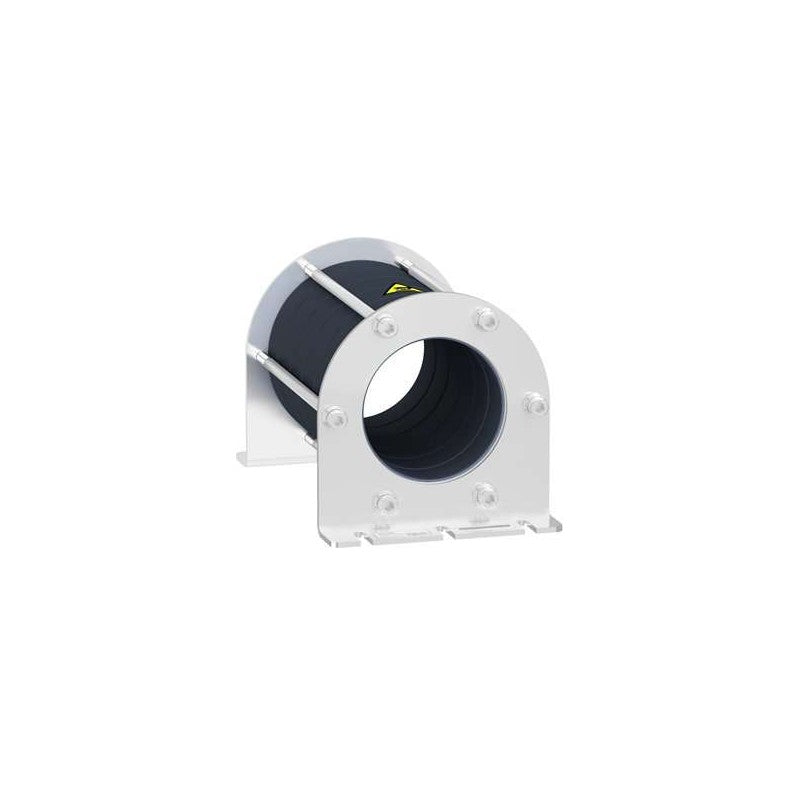

The Schneider Electric VW3A5504 is a common mode filter designed to reduce bearing currents in variable speed drive systems. This filter is an essential component for protecting motor bearings from electrical discharge machining (EDM) effects, thereby extending motor lifespan and preventing premature failure. It is specifically engineered for use with Schneider Electric's Altivar variable frequency drives.

Technical details

• Series: Altivar Accessories
• Product Type: Common Mode Filter
• Inductance: 180 µH
• Function: Bearing Current Reduction
• Compatibility: Designed for use with Schneider Electric Altivar variable frequency drives. Specific drive model compatibility should be verified against the manufacturer's datasheet.
• Construction: Features a robust design suitable for industrial environments.
• Electrical Characteristics: Rated for typical industrial drive voltages and currents; refer to manufacturer documentation for precise ratings.

Applications & compatibility

This common mode filter is critical for applications utilizing variable frequency drives where motor bearing protection is paramount. It is commonly found in systems such as packaging machinery, conveyor systems, HVAC fans, and pumps where the high-frequency switching of VFDs can induce damaging currents in motor bearings. Ensuring proper installation with compatible Altivar drives will safeguard motor longevity.

Available from Industrial Automation Co as new, refurbished, or surplus stock, backed by a 2-year warranty with same-day shipping on in-stock items. Request a quote for the VW3A5504 or contact our technical team for cross-reference assistance with compatible Altivar accessories.
